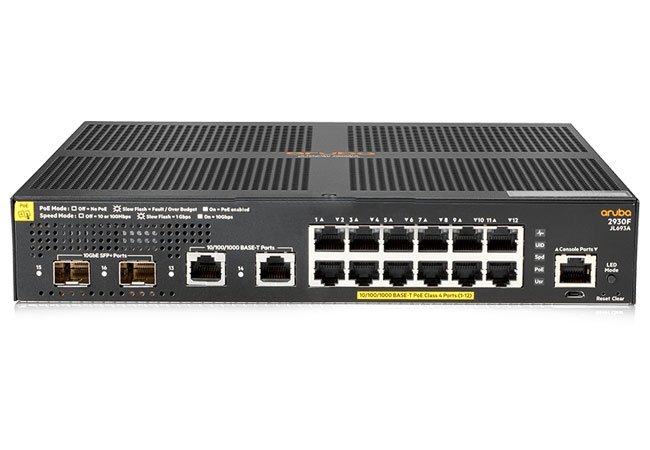

Switch Aruba 2930F-12G- PoE+ 2G/2SFP+ (JL693A)

Switch Aruba 2930F-12G- PoE+ 2G/2SFP+ (JL693A)

Aruba 2930F 12G PoE+ 2G/2SFP+ Switch (JL693A): 12 RJ-45 PoE+ autosensing 10/100/1000 ports, 2 SFP/SFP+ 1G/10G ports.

Danh mục:

Mô tả

Thiết bị mạng Switch Aruba 2930F-12G-PoE+ 2G/2SFP+ (JL693A)

Mã sản phẩmAruba 2930F 12G PoE+ 2G/2SFP+ Switch (JL693A)
I/O ports and slots12 RJ-45 autosensing 10/100/1000 PoE+ ports (IEEE 802.3 Type 10BASE-T, IEEE 802.3u Type 100BASE-TX, IEEE 802.3ab Type 1000BASE-T, IEEE 802.3at PoE+); Duplex: 10BASE-T/100BASE-TX: half or full; 1000BASET: full only

2 RJ-45 autosensing 10/100/1000 ports (IEEE 802.3 Type 10BASE-T, IEEE 802.3u Type 100BASE-TX, IEEE 802.3ab Type 1000BASE-T); Duplex: 10BASE-T/100BASE-TX: half or full; 1000BASE-T: full only

2 SFP+ 1/10GbE ports; PHY-less

Additional ports and slots1 dual-personality (RJ-45 or USB micro-B) serial console port.
Physical characteristicsDimensions: 10 (w) x 10 (d) x 1.73 (h) in (25.4 x 25.4 x 4.39 cm) (1U height)
Weight: 4.85 lb (2.2kg)
Memory and processorDual Core ARM Cortex A9 @ 1016 MHz, 1 GB DDR3 SDRAM; Packet buffer size: 12.38 MB 4.5MB Ingress/7.785 Egress, 4 GB eMMC
Performance1000 Mb Latency < 3.8 µs (64-byte packets)
10 Gb Latency < 1.6 µs (64-byte packets)
Throughut up to 41.7 Mpps
Switching capacity: 68 Gbps
Routing table size: 2,000 IPv4, 1,000 IPv6 in hardware, 200 OSPF, 256 Static, 10,000 RIP
MAC address table size: 32768 entries
EnvironmentOperating temperature: 32°F to 113°F (0°C to 45°C); up to 5000 Feet, – 0C to 40C (32F to 104F) up to 10000 Feet
Operating relative humidity: 15% to 95% @ 104°F (40°C), noncondensing
Nonoperating/Storage temperature:-40°F to 158°F (-40°C to 70°C); up to 15000 Feet.
Nonoperating/Storage relative humidity:15% to 95% @ 149°F (65°C), noncondensing
Acoustic: Power: 0 dB, Pressure: 0 dB Fanless
Electrical characteristicsFrequency: 50/60 Hz
Maximum heat dissipation: 68.2 BTU/hr (72.0 kJ/hr)
Voltage: 90 – 264 VAC, rated
Current: 1.7 A
Maximum power rating: 170 W
PoE power: 139 W PoE+
Module quang SFP dùng cho switch Aruba ​JL693A:
J4858CHPE X121 1G SFP LC SX Transceiver
J4859CHPE X121 1G SFP LC LX Transceiver
J4860CHPE X121 1G SFP LC LH Transceiver
J8177CHPE X121 1G SFP RJ45 T Transceiver
J9054CHPE X111 100M SFP LC FX Transceiver
J4858DAruba 1G SFP LC SX 500m OM2 MMF Transceiver
J4859DAruba 1G SFP LC LX 10km SMF Transceiver
J4860DAruba 1G SFP LC LH 70km SMF Transceiver
J8177DAruba 1G SFP RJ45 T 100m Cat5e Transceiver
J9054DAruba 100M SFP LC FX 2km MMF Transceiver
J9153AHPE X132 10G SFP+ LC ER Transceiver
J9150AHPE X132 10G SFP+ LC SR Transceiver
J9151AHPE X132 10G SFP+ LC LR Transceiver
J9281BHPE X242 10G SFP+ to SFP+ 1m Direct Attach Copper Cable
J9283BHPE X242 10G SFP+ to SFP+ 3m Direct Attach Copper Cable
J9150DAruba 10G SFP+ LC SR 300m OM3 MMF Transceiver
J9151DAruba 10G SFP+ LC LR 10km SMF Transceiver
J9153DAruba 10G SFP+ LC ER 40km SMF Transceiver
J9281DAruba 10G SFP+ to SFP+ 1m Direct Attach Copper Cable
J9283DAruba 10G SFP+ to SFP+ 3m Direct Attach Copper Cable
