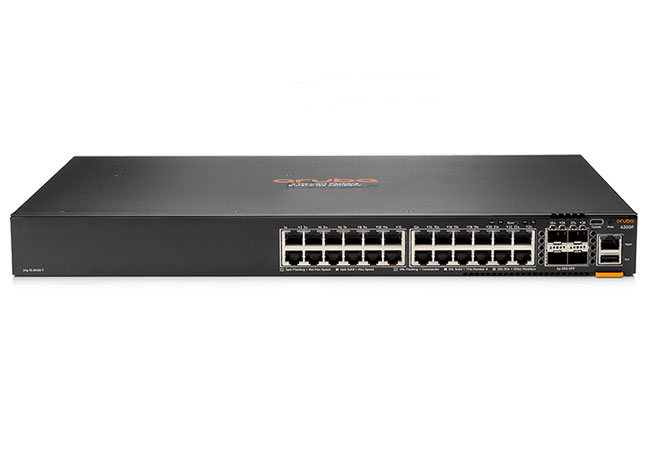

Switch Aruba 6300F 24-port 1GbE and 4-port SFP56 (JL668A)
Aruba 6300F 24-port 1GbE and 4-port SFP56 Switch (JL668A): 24x ports 10/100/1000BaseT Ports; 4x 1/10/25/50G SFP ports
Mô tả
Thiết bị mạng Switch Aruba 6300F 24-port 1GbE and 4-port SFP56 (JL668A)
| Mã sản phẩm | Aruba 6300M 48-port 1GbE and 4-port SFP56 Switch (JL663A) |
| Description | 24x ports 10/100/1000BaseT Ports
4x 1/10/25/50G SFP ports 1x USB-C Console Port 1x OOBM port 1x USB Type A Host port 1x Bluetooth dongle to be used with CX Mobile App |
| Power supplies | Internal (fixed) power supply (160W) |
| Fan tray | Fixed fans. |
| Physical characteristics | |
| Dimensions | 17.4 (w) x 12.9 (d) x 1.73 (h) in
(44.2 cm x 32.7 x 4.39 cm)) |
| Weight | 9.61 lbs (4.36 kg) |
| CPU, Memory And Flash | |
| Processor | Quad Core ARM Cortex™ A72 @ 1.8GHz |
| Memory | 8 GBytes DDR4 |
| Flash | 32 GBytes eMMC |
| Mounting and enclosure | Rack Mount 1U |
| Performance | |
| Packet Buffer | 8 MB packet buffer memory |
| System switching capacity | 880 Gbps |
| System throughput capacity | 660 Mpps |
| Model switching capacity | 448 Gbps |
| Model throughput capacity | 334 Mpps |
| Average latency
(LIFO, 64-byte packets) |
|
| Stack size | 10 members |
| Max stacking distance | Up to 10 kms with long range transceivers |
| Stacking bandwidth | 200 Gbps |
| Switched virtual interfaces (dual stack) | 1,000 |
| IPv4 host table (ARP) | 28,800 |
| IPv6 host table (ND) | 28,800 |
| IPv4 unicast routes | 64,000 |
| IPv6 unicast routes | 32,000 |
| IPv4 multicast routes | 8,000 |
| IPv6 multicast routes | 8,000 |
| MAC table capacity | 29,490 |
| IGMP groups | 8,000 |
| MLD groups | 4,000 |
| IPv4/IPv6/MAC ACL entries (ingress) | 5000/1250/5000 |
| IPv4/IPv6/MAC ACL entries (engress) | 2000/500/2000 |
