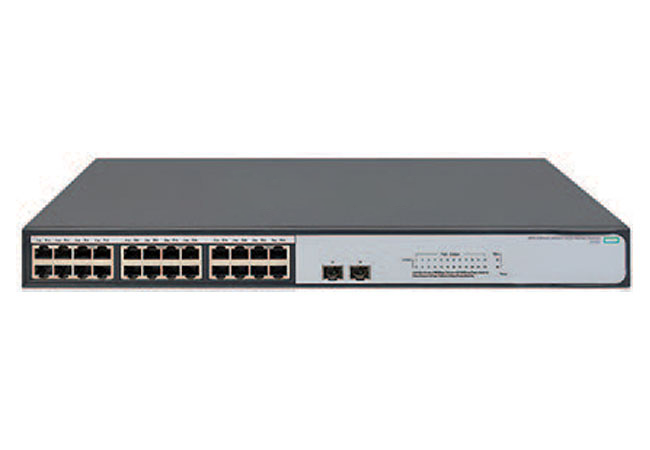

Thiết bị mạng Switch HPE 1420-24G-2SFP+ (JH018A)
HPE OfficeConnect 1420 24G 2SFP+ Switch (JH018A) | ||
I/O ports and slots | 24 RJ-45 autosensing 10/100/1000 ports (IEEE 802.3 Type 10BASE-T, IEEE 802.3u Type 100BASE-TX, IEEE 802.3ab Type 1000BASE-T); Media Type: Auto-MDIX; Duplex: 10BASE-T/100BASE-TX: half or full; 1000BASE-T: full only
2 fixed 1000/10000 SFP+ ports Supports a maximum of 24 autosensing 10/100/1000 ports plus 2 SFP+ ports |
|
Physical characteristics | Dimensions | 17.32(w) x 9.37(d) x 1.73(h) in (44 x 23.8 x 4.4 cm) (1U height) |
Weight | 6.39 lb (2.9 kg) | |
Memory and processor | 8 MB flash; Packet buffer size: 1.5 MB | |
Mounting and enclosure | Mounts in an EIA standard 19-inch telco rack (hardware included); Desktop mounting | |
Performance | 100 Mb Latency | < 8 µs (LIFO 64-byte packets) |
1000 Mb Latency | < 16 µs (LIFO 64-byte packets) | |
10 Gbps Latency | < 2 µs (LIFO 64-byte packets) | |
Throughput | up to 65.5 Mpps (64-byte packets) | |
Switching capacity | 88 Gbps | |
MAC address table size | 16384 entries | |
Reliability | MTBF (years) | 109.4 |
Environment | Operating temperature | 32°F to 104°F (0°C to 40°C) |
Operating relative humidity | 5% to 95%, noncondensing | |
Non-operating/Storage temperature | -40°F to 158°F (-40°C to 70°C) | |
Non-operating/Storage relative humidity | 5% to 95%, noncondensing | |
Altitude | up to 16,404 ft (5 km) | |
Acoustic | Power: 0 dB No fan | |
Electrical characteristics | Frequency | 50/60 Hz |
Voltage | 100 – 240 VAC, rated | |
Current | 0.4 A | |
Maximum power rating | 21 W |
