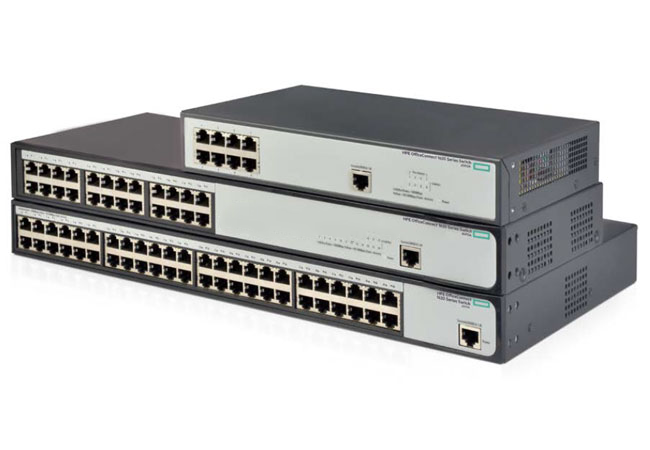

HPE OfficeConnect 1620 8G Switch (JG912A): 8 RJ-45 autosensing 10/100/1000 ports.

Danh mục:

Mô tả

Thiết bị mạng Switch HPE 1620-8G (JG912A)

HPE OfficeConnect 1620 8G Switch (JG912A)
I/O ports and slots8 RJ-45 autosensing 10/100/1000 ports (IEEE 802.3 Type 10BASE-T, IEEE 802.3u Type 100BASE-TX, IEEE 802.3ab Type 1000BASE-T); Duplex: 10BASE-T/100BASE-TX: half or full; 1000BASE-T: full only
Additional ports and slots1 RJ-45 console port to access limited CLI port
Physical characteristicsDimensions10.47(w) x 6.38(d) x 1.73(h) in (26.59 x 16.21 x 4.39 cm) (1U height)
Weight2.2 lb (1 kg)
Memory and processorMIPS @ 500 MHz, 32 MB flash, 128 MB SDRAM; packet buffer size: 512 KB
Mounting and enclosureMounts in an EIA standard 19-inch telco rack or equipment cabinet (hardware included), wall mount
Performance100 Mb Latency< 7 µs
1000 Mb Latency< 5 µs
Throughputup to 11.9 Mpps (64-byte packets)
Switching capacity16 Gbps
MAC address table size8192 entries
ReliabilityMTBF (years)138.89
EnvironmentOperating temperature32°F to 104°F (0°C to 40°C)
Operating relative humidity5% to 95%, noncondensing
Nonoperating/Storage temperature-40°F to 158°F (-40°C to 70°C)
Nonoperating/Storage relative humidity5% to 95%, noncondensing
Altitudeup to 16,404 ft (5 km)
AcousticNo Fan
Electrical characteristicsFrequency50/60 Hz
Voltage100 – 240 VAC, rated
Maximum power rating7 W
