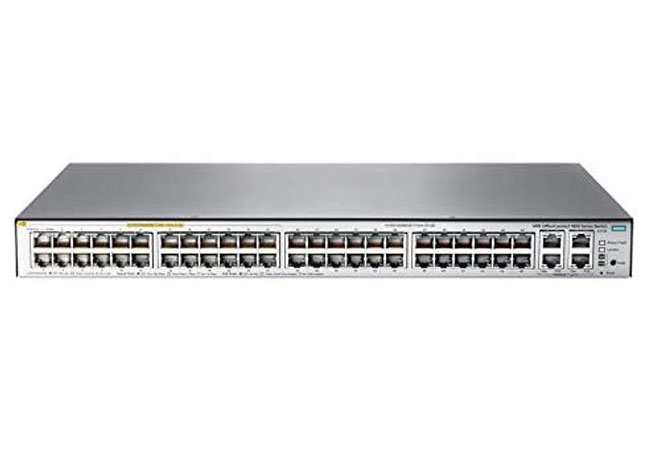

Thiết bị mạng Switch HPE 1850-48G-4XGT PoE+ 370W (JL173A)
HPE OfficeConnect 1850 48G 4XGT PoE+ 370W Switch (JL173A) | ||
I/O ports and slots | 24 RJ-45 auto-negotiating 10/100/1000 PoE+ ports (IEEE 802.3 Type 10BASE-T, IEEE 802.3u Type 100BASE-TX, IEEE 802.3ab Type 1000BASE-T, IEEE 802.3af PoE, IEEE 802.3at); Duplex: 10BASE-T/100BASE-TX: half or full; 1000BASE-T: full only | |
24 RJ-45 auto-negotiating 10/100/1000 ports (IEEE 802.3 Type 10BASE-T, IEEE 802.3u Type 100BASE-TX, IEEE 802.3ab Type 1000BASE-T) | ||
4 RJ-45 1/10GBASE-T ports | ||
Physical characteristics | Dimensions | 17.42(w) x 12.7(d) x 1.73(h) in (44.25 x 32.26 x 4.4 cm) (1U height) |
Weight | 10.3 lb (4.67 kg) | |
Memory and processor | BCM53346 embedded ARM Cortex-A9 @ 400 MHz, 128 MB DDR3 SDRAM; Packet buffer size: 3 MB | |
Performance | 100 Mb Latency | < 10 µs (64-byte packets) |
1000 Mb Latency | < 3.8 µs (64-byte packets) | |
10 Gbps Latency | < 3.8 µs (64-byte packets) | |
Throughput | up to 131 Mpps (64-byte packets) | |
Switching capacity | 176 Gbps | |
MAC address table size | 16000 entries | |
Reliability | MTBF (years) | 57.1 |
Environment | Operating temperature | 32°F to 104°F (0°C to 40°C) |
Operating relative humidity | 15% to 95% (40°C), noncondensing | |
Nonoperating/Storage temperature | -40°F to 158°F (-40°C to 70°C) | |
Nonoperating/Storage relative humidity | 15% to 95% @ 149°F (65°C), noncondensing | |
Altitude | up to 9,842 ft (3 km) | |
Acoustic | Power: 40 dB | |
Airflow direction | Side-to-side | |
Electrical characteristics | Frequency | 50/60 Hz |
Voltage | 100 – 127 / 200 – 240 VAC, rated | |
Current | 5/2.4 A | |
Maximum power rating | 446.4 W | |
Idle power | 46.5 W | |
PoE power | 370 W PoE+ |
