Cáp mạng Alantek Cat6 UTP 4-pair (301-6008LG-03BU)
Cáp mạng Alantek Cat6 UTP 4-pair (301-6008LG-03BU) – Alantek Cat6 Twisted Pair Cable is designed to support high-bandwidth application up to 10Gigabit Ethernet. The cable is composed of 23 AWG bare solid copper conductors insulated with High Density Polyethylene (HDPE) insulation. For the unshielded cable, the 4 twisted pairs are separated by a flexible PE separator and the cable is completed with an Outer Jacket. Horizontal wiring, suitable for application up to 10 Gigabit Ethernet. – Packaging: 305m reel in a carton box.
Mô tả
Cáp mạng Alantek Cat6 UTP 4-pair (301-6008LG-03BU)
– Alantek Cat6 Twisted Pair Cable is designed to support high-bandwidth application up to 10Gigabit Ethernet. The cable is composed of 23 AWG bare solid copper conductors insulated with High Density Polyethylene (HDPE) insulation. For the unshielded cable, the 4 twisted pairs are separated by a flexible PE separator and the cable is completed with an Outer Jacket. Horizontal wiring, suitable for application up to 10 Gigabit Ethernet.

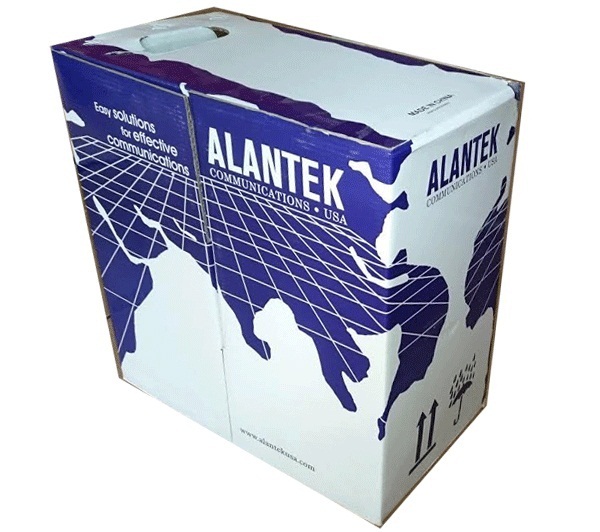

– Packaging: 305m reel in a carton box.
Specifications
| Cable Type | Cat 6 UTP |
| Color | Blue |
| Weight | 15000 kg |
| Standards | TIA/EIA 568B, ISO/IEC 11801, UL 444 |
| Conductor Material | Solid Bare Copper |
| Size: 23 AWG x 4 pairs | |
| Construction: 1/0.56 ± 0.01 mm | |
| Conductor Insulation | Material: HDPE |
| Min. Ave. Thickness: 0.23 mm | |
| Min. Thickness at any point: 0.22 mm | |
| Diameter: 1.03 ± 0.01 mm | |
| Cable Jacket | Material: PVC |
| Min. Ave. Thickness: 0.52 ± 0.02 mm | |
| Min. Thickness at any point: 0.50 mm | |
| Diameter: 6.4 ± 0.2 mm |
– Sản xuất tại Trung Quốc.
