Cáp quang Alantek Outdoor Steel Armour 4-Core 50/125um (306-STA504-Y000)

Cáp quang Alantek Outdoor Steel Armour 4-Core 50/125um (306-STA504-Y000)

Cáp quang Outdoor Steel Armour Alantek 4-Core 50/125um (306-STA504-Y000) – This cable is suitable for Outdoor Direct Burial, Tunnel and Duct installation in harsh environment. The armouring provides rodent and termite protection and the PE Sheath provides UV and Chemical/ Oil resistance.

Mô tả

Cáp quang Alantek Outdoor Steel Armour 4-Core 50/125um (306-STA504-Y000)

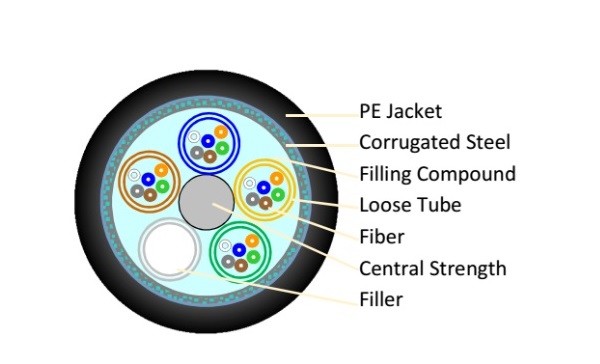

– The fiber, either single mode or multimode type, are positioned in a loose tube made of a high modulus plastic. The tubes are filled with a water-resistant filling compound. A steel wire, sometimes sheathed with polyethylene (PE) for cable with high fiber count, locates in the center of the core as a metallic strength member. Tubes (and fillers) are stranded around the strength member into a compact and circular cable core. A corrugated steel tape armour (CST) is longitudinally applied over the cable core. The cable core is filled with filling compound to protect it from water. The cable is completed with a Polyethylene (PE) sheath.


– Accurate fiber excess length ensures good mechanical and temperature performance.

– High strength loose tube that is hydrolysis resistant and filling compound ensure a critical protection of fiber.

– Specially designed compact structure is good at preventing loose tube from shrinking.

– Crush resistance and flexibility.

– Corrugated steel tape armour (CST) enhances the cable crush resistance, impact resistance and moisture proof.

– 100% cable core filling ensures cable is watertight.

– Fiber Cores: 4.

– Steel Tape (PSP) Thickness (mm): 0.25 + 0.1 Plastic coating on each side.

– Sheath Thickness: 1.5 mm.

– Loose Tube Diameter: 1.7 mm.

– Loose Tube Thickness: 1.9 mm.

– Sản xuất tại Trung Quốc.
