Dell PowerEdge R240

Dell PowerEdge R240

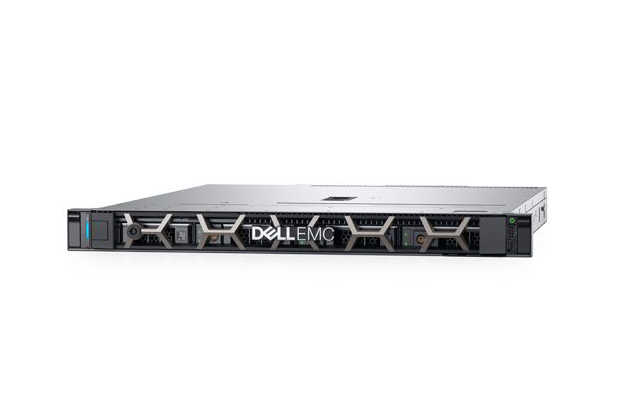

Compute made simple. The Dell EMC PowerEdge R240 is an affordable single-socket 1U rack server designed for small businesses and service providers.

Danh mục:

Mô tả

Cấu hình cơ bản máy chủ Dell PowerEdge R240 4×3.5″ E-2176G, RAM 16GB, PERC H330:

Key Feature:

  • Processor: Intel Xeon E-2176G (4C , 3.7G)
  • RAM: 16GB UDIMM, 2666MTs
  • HDD: Option. Up to 4 HDD x 3.5″ drive bay
  • Network controller: On-Board LOM 1GBE
  • Storage controllers: PERC H330
  • Embedded management: iDRAC9 Basic
  • PSU:  Cabled PSU 250W
  • Form factor: Rack (1U)

Thống số kỹ thuật Dell PowerEdge R240:

Processor:1 processor from the following:

  • Intel® Xeon® E-2100 product family,
  • Intel Pentium®,
  • Intel Core i3®,
  • Intel Celeron®

Bezel: Optional security bezel


Form Factor: Rack (1U)


  • Chassis width: 434.00mm (17.08″)
  • Chassis depth: 595.63mm (23.45″) (3.5inch HHD config)

Note: These dimensions do not include: bezel, redundant PSU

Chassis weight: 12.2 kg (29.98 lbs)

Hard Drive Configuration:

  • Up to 4 x 3.5 hot-plug SAS, SATA, or SSD*
  • Up to 2 x 3.5 cabled SAS, SATA, or SSD*


  • DIMM Speed: Up to 2666MT/s DDR4 DIMMs
  • Memory Type: UDIMMs
  • Memory Module Slots: 4
  • Maximum RAM: Up to 64GB


Embedded / At-the-Server:

  • iDRAC9 with Lifecycle Controller
  • iDRAC Direct
  • iDRAC RESTful API with Redfish


  • OpenManage Enterprise
  • OpenManage Essentials
  • OpenManage Power Center

Mobility: OpenManage Mobile


  • iDRAC Service Module
  • OpenManage Server Administrator
  • Dell EMC Repository Manager
  • Dell EMC System Update
  • Dell EMC Server Update Utility
  • Dell EMC Update Catalogs
  • IPMI Tool

OpenManage Integrations:

  • Microsoft® System Center
  • VMware® vCenter™
  • BMC Truesight (available from BMC)
  • Red Hat Ansible

OpenManage Connections:

  • Nagios Core & Nagios XI
  • Micro Focus Operations Manager i (OMi)
  • IBM Tivoli Netcool/OMNIbus

Network Controller: 2 x 1GbE LOM Network Interface Controller (NIC) ports



  • One USB 2.0
  • Micro USB 2.0 compliant for iDRAC Direct


  • Two USB 3.0
  • VGASerial connector

Internal port: One USB 3.0

Power Supplies: Single 250W or a 450W cabled PSU

I/O Expansion Slots

2 x PCIe Gen 3.0 slots:

  • One x8 slot low-profile, half length with x4 slot width
  • One x16 slot low-profile/full-height, half length with x8 bandwith

Supported Operating Systems

  • Microsoft Windows Server® with Hyper-V
  • Red Hat® Enterprise Linux
  • SUSE® Linux Enterprise Server
  • VMware® ESXi
  • Citrix® XenServer®
  • Ubuntu Server
  • Certify XenServer

Storage Controllers

Internal controllers: PERC H730P, H330, HBA330 (non-RAID)

Software RAID: PERC S140

External HBAs: 12Gbps SAS HBA (non-RAID)

Boot Optimized Storage Subsystem: 2x M.2 240GB (RAID 1 or No RAID), 1x M.2 240GB (No RAID only)

Rack Support: ReadyRails™ sliding rails with optional cable management arm for 4-post racks (optional adapter brackets required for threaded hole racks).

Recommended Support: Choose Dell ProSupport Plus for critical systems or Dell ProSupport for premium hardware and software support for your PowerEdge solution. Consulting and deployment offerings are also available. Contact your Dell representative today for more information. Availability and terms of Dell Services vary by region
