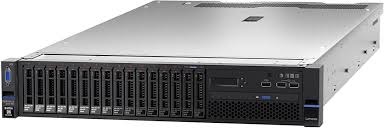

Server IBM x3650M5

Server IBM x3650M5

x3650 M5, Xeon 6C E5-2620v3 85W 2.4GHz/1866MHz/15MB, 1x16GB, O/Bay HS 2.5in SAS/SATA, SR M1215, 550W p/s, Rack
Danh mục:

Mô tả

Máy chủ Server IBM x3650M5

5462B2A x3650 M5, Xeon 6C E5-2609v3 85W 1.9GHz/1600MHz/15MB, 1x8GB, O/Bay SS 3.5in SAS/SATA, 550W p/s, Rack
5462C2A x3650 M5, Xeon 6C E5-2620v3 85W 2.4GHz/1866MHz/15MB, 1x16GB, O/Bay HS 2.5in SAS/SATA, SR M1215, 550W p/s, Rack
5462C4A x3650 M5, Xeon 6C E5-2620v3 85W 2.4GHz/1866MHz/15MB, 1x16GB, O/Bay HS 3.5in SAS/SATA, SR M1215, 550W p/s, Rack
5462D2A x3650 M5, Xeon 8C E5-2630v3 85W 2.4GHz/1866MHz/20MB, 1x16GB, O/Bay HS 2.5in SAS/SATA, SR M5210, 550W p/s, Rack
5462D4A x3650 M5, Xeon 8C E5-2630v3 85W 2.4GHz/1866MHz/20MB, 1x16GB, O/Bay HS 3.5in SAS/SATA, SR M5210, 750W p/s, Rack
5462F2A x3650 M5, Xeon 8C E5-2640v3 90W 2.6GHz/1866MHz/20MB, 1x16GB, O/Bay HS 2.5in SAS/SATA, SR M5210, 550W p/s, Rack
5462F4A x3650 M5, Xeon 8C E5-2640v3 90W 2.6GHz/1866MHz/20MB, 1x16GB, O/Bay HS 2.5in SAS/SATA, SR M5210, 750W p/s, Rack
5462G2A x3650 M5, Xeon 10C E5-2650v3 105W 2.3GHz/2133MHz/25MB, 1x16GB, O/Bay HS 2.5in SAS/SATA, SR M5210, 750W p/s, Rack

Thông số kỹ thuật:

Form factor/height 2U Rack
Processor (max)/Cache (max) Up to two Intel Xeon E5-2600 v3 series processors with up to 18 cores each/Up to 45 MB per processor
Memory (max) Up to 1.5 TB of memory with SK Hynix 64 GB* TruDDR4™ Memory LRDIMMs; System supports RDIMM/LRDIMM
Disk bays Up to 24 front and 2 rear 2.5-inch HDDs/SSDs; or up to 12 3.5-inch and 2 rear 3.5-inch HDDs + 2 rear 2.5-inch HDDs/SSDs; or up to 8 3.5-inch HDDs and 2 rear 3.5-inch or 2.5-inch HDDs/SSDs (model dependent)
RAID support 12 Gbps dedicated slot for the first RAID; support for up to four RAID adapters
Power supply (std/max) 1/2 redundant 550 W AC, 750 W AC, 900 W AC 80 PLUS® Platinum, or 750 W AC 80 PLUS Titanium
Hot-swap components Power supplies, fan modules and HDDs/SSDs
Network Interface 4 × 1 GbE (std.) and 1 x IMM; optional 10/40 GbE ML2 or PCIe adapter; Trusted Platform Module built-in
Expansion slots 1 – 8 PCIe 3.0 slots (supports up to 2 x 300 W GPUs and up to 1 x ML2) and 1 dedicated RAID slot
USB Ports/VGA Ports Up to 3 front (1 x USB 3.0, 2 x USB 2.0) and 4 back (2 x USB 3.0, 2 x USB 2.0) and 1 internal (USB 3.0) for hypervisor/1 front and 1 back
Maximum internal storage Up to 86.4 TB
Energy-efficiency compliance 80 PLUS Platinum, 80 PLUS Titanium; ENERGY STAR® compliance (model dependent)
Systems management IMM2.1; one IMM dedicated port and one shared; optional remote presence; Predictive Failure Analysis; LEDs; optional next-gen light path diagnostics panel
Operating systems (OS) supported Microsoft Windows Server, Red Hat Enterprise Linux, SUSE Linux Enterprise Server, VMware vSphere – (Optional USB Key or SD Media Adapter)
Limited warranty 3-year customer replaceable unit and onsite limited warranty, next business day 9×5; upgrades available
