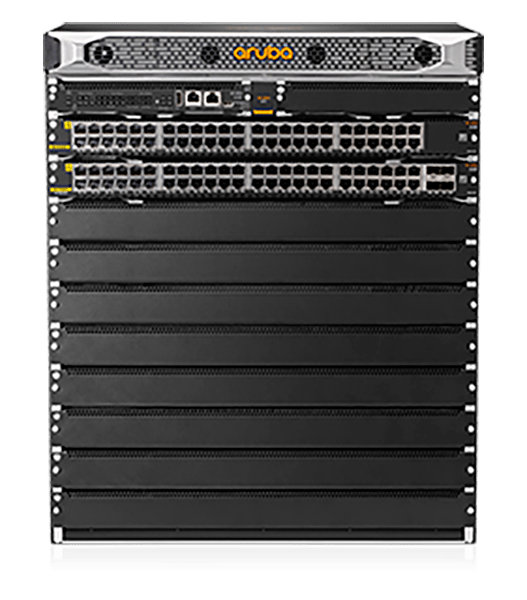

Aruba 6410 96G CLS4 PoE 4SFP56 Switch bundle (JL741A): 1x 6410 Chassis Switch (R0X25A); 1x Management Module (R0X31A); 4x Fan Trays (R0X32A); 1x R0X38B Line Card; 1x R0X39B Line Card; 8 open module slots

Danh mục:

Mô tả

Thiết bị mạng Switch Aruba 6410 96G CLS4 PoE 4SFP56 bundle (JL741A)

Product Name Aruba 6410 96G CLS4 PoE 4SFP56 Switch bundle ( JL741A)
Description 1x 6410 Chassis Switch (R0X25A)
1x Management Module (R0X31A)
4x Fan Trays (R0X32A)
1x R0X38B Line Card
1x R0X39B Line Card
8 open module slotsPower supply units not included; order separately
96x 10/100/1000BaseT PoE+ Ports supporting up to 30W per port
4x 1/10/25/50G SFP ports
Supports any of the following line cards in the open slots:R0X38B, R0X39B, R0X40B, R0X41A, R0X42A, R0X43A, R0X44A, R0X45A
Supports PoE Standards IEEE 802.3af, 802.3at, 802.3bt (up to 60W)
1x RJ‑45 Console Port
1x USB‑C Console Port
1x OOBM
1x USB Type A Host port
1x Bluetooth dongle to be used with AOS‑CX Mobile App
Power supplies Supports four modular front‑serviceable power supplies with removable rear‑serviceable power cord inlet adapters. Supported Power Supplies: R0X35A, R0X36A. PoE available will be dependent on the number of management modules, line cards, fan trays and the number of power supplies used. Power supplies not included; order separately
Fans Four field replaceable system fan trays
Physical characteristics
Dimensions (H) 52.88 cm x(W) 44.26 cm x(D) 44.85 cm
(20.8” x 17.5” x 17.7”)
Configuration Weight 58.3 kg (128.8 lbs)
Additional Specifications
CPU Management Module: Quad Core ARM Cortex™ A72 @ 1.8GHz
Line Card: Dual Core ARM Cortex™ A72 @ 1.8GHz
Memory and Flash Management Module: 16GB DDR4 ECC memory; 32GB eMMC Flash memory
Line Card: 4GB DDR4 memory
Packet Buffer R0X38A‑R0X43A and R0X38B‑R0X40B Line Cards: 8MB packet buffer memory per line card
R0X44A‑R0X45A Line Cards: 32MB packet buffer memory per line card
Performance
System Switching Capacity 28 Tbps
System Throughput Capacity 20 Bpps
Switched Virtual Interfaces (dual stack) 2,000
IPv4 Host Table (ARP) 28,800
IPv6 Host Table (ND) 28,800
IPv4 Unicast Routes 64,000
IPv6 Unicast Routes 64,000
IPv4 Multicast Routes 8,000
IPv6 Multicast Routes 8,000
MAC Table Capacity 29,490
IGMP Groups 8,000
MLD Groups 4,000
IPv4/IPv6/MAC ACL Entries (ingress) 5000/1250/5000 per line card
IPv4/IPv6/MAC ACL Entries (egress) 2000/500/2000 per line card
