Switch Planet FSD-503

Switch Planet FSD-503

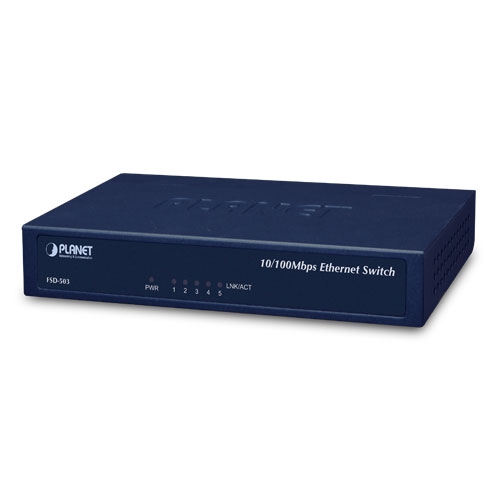

Switch Planet FSD-503: 5-Port 10/100Mbps Fast Ethernet Switch

Mô tả

Thiết bị mạng Switch Planet FSD-503

Hardware Specifications
Hardware Version4
10/100Base-TX Ports5 auto MDI/MDIX ports
LED DisplayOne for Power, One for Link / Act per port
EnclosureMetal
Dimensions (W x D x H)155 x 86 x 26 mm
Weight (g)306g
Power Requirements (External power adapter)5V DC, 1A
Power Consumption (100M full operation)1.8 watts / 6.1BTU
Switch Specifications
Switch Processing SchemeStore-and-Forward
Address Table2K
Share Data BufferBuilt-in
Flow ControlBack pressure half duplex, IEEE 802.3x pause frame full duplex
Switch Fabric1Gbps
Throughput (packet per second)0.744Mpps
Maximum Packet Size1536bytes
Standards Conformance
Standards ComplianceIEEE 802.3 (Ethernet)
IEEE 802.3u (Fast Ethernet)
IEEE 802.3x (Full-duplex Flow Control)
IEEE 802.3az Energy Efficient Ethernet (EEE)
Regulation ComplianceFCC Part 15 Class B, CE
Environments
TemperatureOperating: 0~50 degrees C
Storage: -10~70 degrees C
HumidityOperating: 5~95%, Storage: 5~95% (non-condensing)
