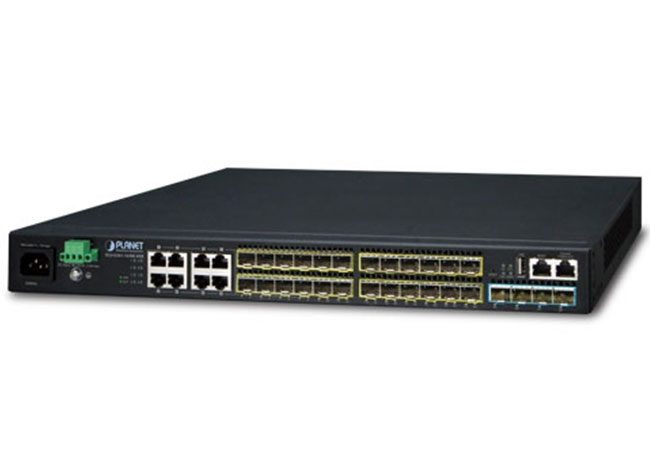

Switch Planet SGS-6340-20S4C4X: Layer 3 20-Port 100/1000X SFP + 4-Port Gigabit TP/SFP + 4-Port 10G SFP+ Stackable Managed Switch

Mô tả

Thiết bị mạng Switch Planet SGS-6340-20S4C4X

Product ModelSGS-6340-20S4C4X
DescriptionLayer 3 20-Port 100/1000X SFP + 4-Port Gigabit TP/SFP + 4-Port 10G SFP+ Stackable Managed Switch
Hardware Specification
Copper Ports4x 10/100/1000BASE-T RJ45 auto-MDI/MDI-X ports, shared with port-21 to port-24
SFP/mini-GBIC Slots24x 100/1000BASE-X SFP interfaces
Compatible with 100BASE-FX SFP transceiver
SFP+ Slots4 10GBASE-SR/LR SFP+ interface (port-25 to port-28)
Compatible with 1000BASE-SX/LX/BX SFP transceiver
Console1 x RJ45-to-RS232 serial port (9600, 8, N, 1)
Switch ArchitectureStore-and-Forward
Switch Fabric128Gbps/ non-blocking
Switch Throughput95.24 Mpps
MAC Address Table16K MAC address table with auto learning function
Share Data Buffer1.5MB
Flow ControlIEEE 802.3x Pause Frame for Full-Duplex
Back pressure for Half-Duplex
Jumbo Frame9KB
LEDSystem: PWR, SYS
Ports:
– 10/100/1000T RJ45 Port: LNK/ACT
– 100/1000X SFP Slot: LNK/ACT
– 1/10G SFP+ Slot: LNK/ACT
Dimension (W x D x H)442 x 220 x 44 mm, 1U height
Weight2821g
Power Consumption54.5 watts/185.96 BTU (maximum)
Power RequirementAC 100~240V, 50/60Hz
DC -48 ~ -60V
Fan2
Management Function
System ConfigurationConsole, Telnet, SSH, Web browser, SNMP v1, v2c and v3
ManagementSupports both IPv4 and IPv6 addressing.
Supports the user IP security inspection for IPv4/IPv6 SNMP.
Supports MIB and TRAP.
Supports IPv4/IPv6 FTP/TFTP.
Supports IPv4/IPv6 NTP.
Supports RMON 1, 2, 3, 9 four groups.
Supports the RADIUS authentication for IPv4/IPv6 Telnet user name and password.
Supports IPv4/IPv6 SSH.
The right configuration for users to adopt RADIUS server’s shell management.
Supports CLI, console, Telnet.
Supports SNMPv1, v2c and v3.
Supports Security IP safety net management function: avoid unlawful landing at non-restrictive area.
Supports Syslog server for IPv4 and IPv6.
Supports TACACS+.
Layer 3 Function
Routing ProtocolStatic routing, RIP and OSPF
Routing Table128
Layer 2 Function
Port ConfigurationPort disable / enable
Auto-Negotiation 10/100/1000Mbps full and half duplex mode selection
Flow Control disable / enable
Bandwidth control on each port
Port loopback detect
Port StatusDisplay each port’s speed duplex mode, link status, Flow control status, Auto negotiation status.
VLAN802.1Q Tagged Based VLAN
802.1ad Q-in-Q
GVRP for VLAN management
Private VLAN Edge (PVE)
Protocol-based VLAN
MAC-based VLAN
IP subnet VLAN
Bandwidth ControlTX/RX/both
Link AggregationIEEE 802.3ad LACP / Static Trunk
Supports 128 groups of 8-Port per trunk group
QoS8 priority queues on all switch ports.
Supports strict priority and Weighted Round Robin (WRR) CoS policies.
Traffic classification:
– IEEE 802.1p CoS/ToS
– IPv4/IPv6 DSCP
– Port-based WRR
MulticastIGMP v1/v2/v3 snooping
Querier mode support
MLD v1/v2 snooping
Querier mode support
Multicast VLAN Register (MVR)
Access Control ListSupports Standard and Expanded ACL
IP-based ACL/MAC-based ACL
Time-based ACL
Up to 512 entries
Bandwidth ControlAt least 64Kbps stream
SecuritySupports MAC + port binding
IPv4/IPv6 + MAC + port binding
IPv4/IPv6 + port binding
Supports MAC filter ARP scanning prevention
AuthenticationIEEE 802.1x port-based network access control
AAA authentication: TACACS+ and IPv4/IPv6 over RADIUS
Standards Conformance
Regulation ComplianceFCC Part 15 Class A, CE
Standards ComplianceIEEE 802.3 10BASE-T
IEEE 802.3u 100BASE-TX
IEEE 802.3z Gigabit 1000BASE-SX/LX
IEEE 802.3ab Gigabit 1000BASE-T
IEEE 802.3ae 10Gb/s Ethernet
IEEE 802.3x flow control and back pressure
IEEE 802.3ad port trunk with LACP
IEEE 802.1D Spanning Tree Protocol
IEEE 802.1w Rapid Spanning Tree Protocol
IEEE 802.1s Multiple Spanning Tree Protocol
IEEE 802.1p Class of Service
IEEE 802.1Q VLAN tagging
IEEE 802.1X port authentication network control
IEEE 802.1ab LLDP
RFC 768 UDP
RFC 793 TFTP
RFC 791 IP
RFC 792 ICMP
RFC 2068 HTTP
RFC 1112 IGMP v1
RFC 2236 IGMP v2
RFC 3376 IGMP v3
RFC 2710 MLD v1
FRC 3810 MLD v2
RFC 2328 OSPF v2
RFC 1058 RIP v1
RFC 2453 RIP v2
Environment
OperatingTemperature: 0 ~ 50 Degree C
Relative Humidity: 5 ~ 95% (non-condensing)
StorageTemperature: -10 ~ 70 Degree C
Relative Humidity: 5 ~ 95% (non-condensing)
