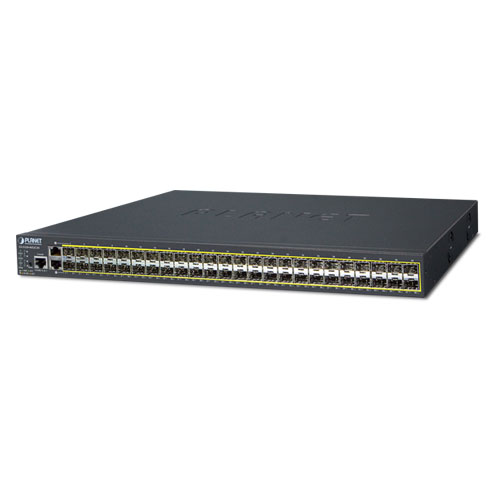

Switch Planet GS-5220- 46S2C4X
Switch Planet GS-5220-46S2C4X: L2+ 46-Port 100/1000BASE-X SFP + 2-Port Gigabit TP/SFP + 4-Port 10G SFP+ Managed Switch with Hardware Layer3 IPv4/IPv6 Static Routing
Mô tả
Thiết bị mạng Switch Planet GS-5220-46S2C4X
| Hardware Specifications | |
| Copper Ports | 2 10/100/1000BASE-T RJ45 auto-MDI/MDI-X ports, shared with Port-1 to Port-2 |
| SFP/mini-GBIC Slots | 48 100/1000BASE-X SFP interfaces |
| Compatible with 100BASE-FX SFP transceiver | |
| SFP+ Slots | 4 10GBASE-SR/LR SFP+ interface (Port-49 to Port-52) |
| Compatible with 1000BASE-SX/LX/BX SFP transceiver | |
| Console | 1 x RS-232-to-RJ45 serial port (115200, 8, N, 1) |
| Switch Architecture | Store-and-Forward |
| Switch Fabric | 176Gbps |
| Throughput | 130.95Mpps@64Bytes |
| Address Table | 32K entries, automatic source address learning and ageing |
| Shared Data Buffer | 32M bits |
| Flow Control | IEEE 802.3x pause frame for full-duplex |
| Back pressure for half-duplex | |
| Jumbo Frame | 10K bytes |
| Reset Button | < 5 sec: System reboot |
| > 5 sec: Factory default | |
| Dimensions (W x D x H) | 440 x 300 x 44.5 mm, 1U height |
| Weight | 4346g |
| LED | System: |
| PWR (Green), SYS (Green), Fan 1 (Red), Fan 2 (Red) | |
| 10/100/1000T RJ45 Combo Interfaces (Port 1 to Port 2): | |
| 1000Mbps LNK/ACT (Green) | |
| 10/100Mbps LNK/ACT (Orange) | |
| 100/1000Mbps SFP Interfaces (Port 1 to Port 48): | |
| 1000Mbps LNK/ACT (Green) | |
| 100Mbps LNK/ACT (Orange) | |
| 1/10Gbps SFP+ Interfaces (Port 49 to Port 52): | |
| 10G (Green) | |
| 1G (Green) | |
| Power Requirements | 100~240V AC, 50/60Hz |
| Power Consumption | 80 watts / 272.9 BTU/hr (max.) |
| ESD Protection | Air discharge: ± 8kV |
| Contact discharge: ± 4kV | |
| Layer 2 Management Functions | |
| Port Configuration | Port disable / enable |
| Auto-negotiation 10/100/1000Mbps full and half duplex mode selection | |
| Flow control disable / enable | |
| Port Status | Display each port’s speed duplex mode, link status, flow control status, auto-negotiation status, trunk status |
| Port Mirroring | TX / RX / Both |
| Many-to-1 monitor | |
| VLAN | 802.1Q tagged based VLAN |
| Q-in-Q tunneling | |
| Private VLAN Edge (PVE) | |
| MAC-based VLAN | |
| Protocol-based VLAN | |
| Voice VLAN | |
| IP Subnet-based VLAN | |
| MVR (Multicast VLAN Registration) | |
| Up to 255 VLAN groups, out of 4095 VLAN IDs | |
| Link Aggregation | IEEE 802.3ad LACP / Static Trunk |
| 26 groups of 8-Port trunk supported | |
| Spanning Tree Protocol | STP, IEEE 802.1D Spanning Tree Protocol |
| RSTP, IEEE 802.1w Rapid Spanning Tree Protocol | |
| MSTP, IEEE 802.1s Multiple Spanning Tree Protocol | |
| QoS | Traffic classification based, Strict priority and WRR |
| 8-level priority for switching | |
| – Port Number | |
| – 802.1p priority | |
| – 802.1Q VLAN tag | |
| – DSCP/ToS field in IP packet | |
| IGMP Snooping | IGMP (v1 / v2 / v3) Snooping, up to 255 multicast groups |
| IGMP Querier mode support | |
| MLD Snooping | MLD (v1 / v2) Snooping, up to 255 multicast groups |
| MLD Querier mode support | |
| Access Control List | IP-based ACL / MAC-based ACL |
| Up to 256 entries | |
| Bandwidth Control | Per port bandwidth control |
| Ingress: 100Kbps~1000Mbps | |
| Egress: 100Kbps~1000Mbps | |
| Layer 3 Functions | |
| IP Interfaces | Max. 128 VLAN interfaces |
| Routing Table | Max. 32 routing entries |
| Routing Protocols | IPv4 hardware Static Routing |
| IPv6 hardware Static Routing | |
| Management | |
| Basic Management Interfaces | Console / Telnet / Web browser / SNMP v1, v2c |
| Secure Management Interfaces | SSH, SSL, SNMP v3 |
| SNMP MIBs | RFC 1213 MIB-II |
| RFC 1493 Bridge MIB | |
| RFC 1643 Ethernet MIB | |
| RFC 2863 Interface MIB | |
| RFC 2665 Ether-Like MIB | |
| RFC 2819 RMON MIB (Group 1, 2, 3 and 9) | |
| RFC 2737 Entity MIB | |
| RFC 2618 RADIUS Client MIB | |
| RFC 2863 IF-MIB | |
| RFC 2933 IGMP-STD-MIB | |
| RFC 3411 SNMP-Frameworks-MIB | |
| RFC 4292 IP Forward MIB | |
| RFC 4293 IP MIB | |
| RFC 4836 MAU-MIB | |
| IEEE 802.1X PAE | |
| LLDP | |
| Standards Conformance | |
| Regulation Compliance | FCC Part 15 Class A, CE |
| Standards Compliance | IEEE 802.3 10BASE-T |
| IEEE 802.3u 100BASE-TX/100BASE-FX | |
| IEEE 802.3z Gigabit SX/LX | |
| IEEE 802.3ab Gigabit 1000T | |
| IEEE 802.3ae 10Gb/s Ethernet | |
| IEEE 802.3x flow control and back pressure | |
| IEEE 802.3ad port trunk with LACP | |
| IEEE 802.1D Spanning Tree Protocol | |
| IEEE 802.1w Rapid Spanning Tree Protocol | |
| IEEE 802.1s Multiple Spanning Tree Protocol | |
| IEEE 802.1p Class of Service | |
| IEEE 802.1Q VLAN tagging | |
| IEEE 802.1X Port Authentication Network Control | |
| IEEE 802.1ab LLDP | |
| RFC 768 UDP | |
| RFC 793 TFTP | |
| RFC 791 IP | |
| RFC 792 ICMP | |
| RFC 2068 HTTP | |
| RFC 1112 IGMP version 1 | |
| RFC 2236 IGMP version 2 | |
| RFC 3376 IGMP version 3 | |
| RFC 2710 MLD version 1 | |
| FRC 3810 MLD version 2 | |
| Environment | |
| Operating | Temperature: 0 ~ 50 degrees C |
| Relative Humidity: 5 ~ 95% (non-condensing) | |
| Storage | Temperature: -10 ~ 70 degrees C |
| Relative Humidity: 5 ~ 95% (non-condensing) | |
