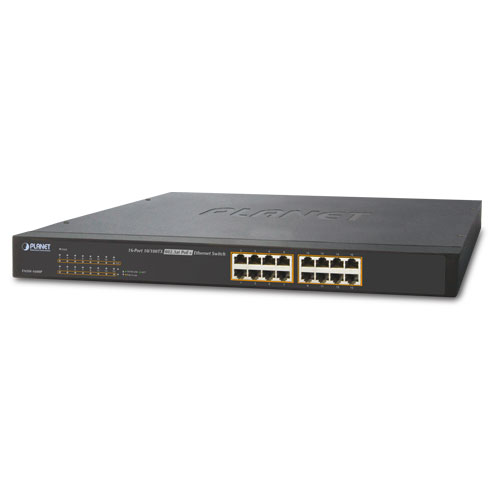

Switch Planet FNSW-1600P: 16-Port 10/100TX 802.3at PoE+ Ethernet Switch

Mô tả

Thiết bị mạng Switch Planet FNSW-1600P

ProductFNSW-1600P
Hardware Specification
Copper Ports16 10/100BASE-TX RJ45 auto-MDI/MDI-X ports
PoE Inject Port16 ports with 802.3at/af PoE injector function with Port-1 to Port-16
LED IndicatorsSystem: Power(Green)
Port 1 to Port 16:

  • 10/100 LNK/ACT (Green)
  • PoE-in-Use (Orange)
Switch ArchitectureStore-and-Forward
Address Table8K entries, automatic source address learning and aging
Switch Fabric3.2Gbps/non-blocking
Throughput (packet per second)2.38Mpps@64 bytes
Power RequirementsAC 100~240V, 50/60Hz, 2A max.
Power ConsumptionMax. 133.3 watts/457.4 BTU
Dimensions (W x D x H)445 x 207 x 45 mm
Weight2330g
Power over Ethernet
PoE StandardIEEE 802.3af Power over Ethernet/PSE
IEEE 802.3at Power over Ethernet Plus/PSE
PoE Power Supply TypeMid-span
PoE Power OutputPer port 52V DC ( max.30.8 watts)
Power Pin Assignment4/5(+), 7/8(-)
PoE Power Budget125 watts
Standard Conformance
Regulation ComplianceFCC Part 15 Class A, CE
Standard ComplianceIEEE 802.3 10BASE-T
IEEE 802.3u 100BASE-TX/100BASE-FX
IEEE 802.3x flow control and back pressure
IEEE 802.3af Power over Ethernet
IEEE 802.3at Power over Ethernet Plus
Environment
OperatingTemperature: 0 ~ 50 degrees C
Relative Humidity: 5 ~ 95% (non-condensing)
StorageTemperature: -10 ~ 70 degrees C
Relative Humidity: 5 ~ 95% (non-condensing)
