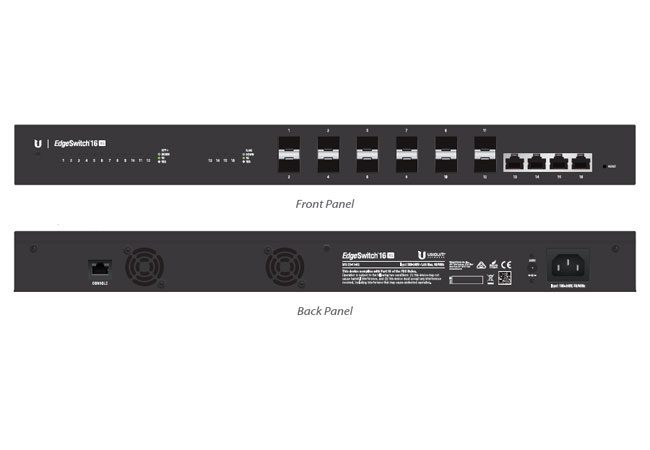

Unifi EdgeSwitch ES‑16‑XG

Thiết bị mạng Switch Unifi EdgeSwitch ES-16-XG

Product	ES-16-XG
Dimensions	443 x 221 x 43 mm (17.44 x 8.70 x 1.69″)
Weight	Without Mount Brackets	With Mount Brackets
	2.62 kg (5.78 lb)	2.71 kg (5.97 lb)
Total Non-Blocking Throughput	160 Gbps
Enclosure Characteristics	SGCC Steel
Switching Capacity	320 Gbps
Forwarding Rate	238.10 Mpps
Max. DC Power Consumption	36W (Excludes SFP/SFP+ Modules)
Power Method	AC	DC
	100-240VAC/50-60 Hz, Universal Input	DC 56W, 25 to 16V, with 2.5 mm DC Power Inline Connector
Power Supply	AC/DC, Internal, 56W DC
Supported Voltage Range	AC: 100 to 240VAC DC: 25 to 16VDC
LEDs Per Port	Speed/Link/Activity
Networking Interfaces	(12) 1/10 Gbps SFP+ Ethernet Ports (4) 1/10 Gbps RJ45 Ethernet Ports
Management Interface	(1) RJ45 Serial Port, Ethernet In/Out Band
Certifications	CE, FCC, IC
Wallmount	Yes
ESD/EMP Protection	Air: ±24 kV, Contact: ±24 kV
Operating Temperature	-5 to 40° C (23 to 104° F)
Operating Humidity	5 to 95% Noncondensing
Shock and Vibration	ETSI300-019-1.4 Standard
