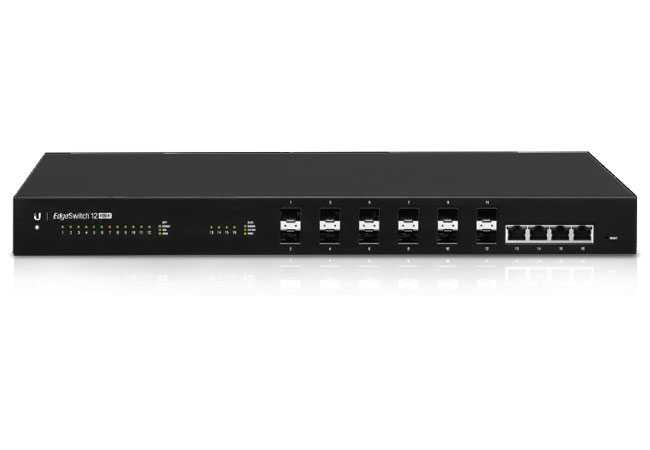

Unifi EdgeSwitch ES-12F

Unifi EdgeSwitch ES-12F

Switch Unifi EdgeSwitch ES-12F Fiber Managed Gigabit Fiber Switch, features 12 SFP ports, eight of which also support 100 Mbps. For copper connectivity, the EdgeSwitch Fiber offers four Gigabit RJ45 ports.

Mô tả

Thiết bị mạng Switch Unifi EdgeSwitch ES-12F

Product
ES-12F
Dimensions
443 x 221 x 43 mm (17.44 x 8.70 x 1.69″)
Weight
Without Mount Brackets
With Mount Brackets
2.59 kg (5.71 lb)2.68 kg (5.91 lb)
Total Non-Blocking Throughput
16 Gbps
Enclosure Characteristics
SGCC Steel
Switching Capacity
32 Gbps
Forwarding Rate
23.81 Mpps
Max. Power Consumption
56W
Power Method
AC
DC
100-240VAC/50-60 Hz, Universal InputDC 56W, 25 to 16V, with 2.5 mm DC Power Inline Connector
Power Supply
AC/DC, Internal, 56W DC
Supported Voltage Range
AC: 100 to 240VAC
DC: 25 to 16VDC
LEDs Per Port
Speed/Link/Activity
Networking Interfaces
(8) 100/1000 Mbps SFP Ethernet Ports
(4) 1000 Mbps SFP Ethernet Ports
(4) 10/100/1000 Mbps RJ45 Ethernet Ports
Management Interface
(1) RJ45 Serial Port, Ethernet In/Out Band
Certifications
CE, FCC, IC
Wallmount
Yes
ESD/EMP Protection
Air: ±24 kV, Contact: ±24 kV
Operating Temperature
-5 to 40° C (23 to 104° F)
Operating Humidity
5 to 95% Noncondensing
Shock and Vibration
ETSI300-019-1.4 Standard
