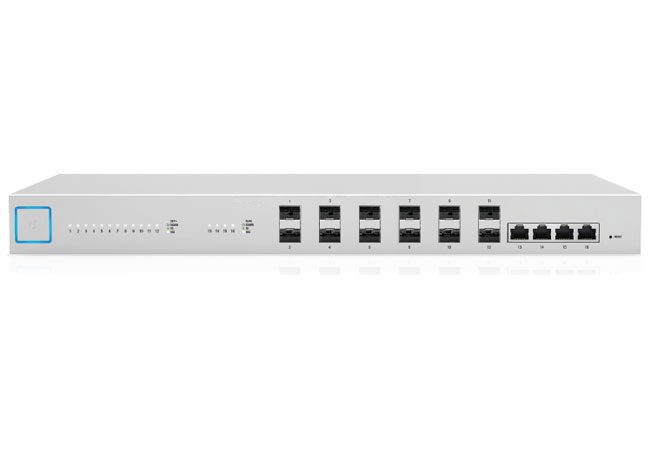

UniFi Switch US-16-XG

UniFi Switch US-16-XG

Switch Unifi US-16-XG fully managed, 16-port, 10G fiber switch that enhances network capacity by providing high‑bandwidth aggregation connectivity to multiple switches in your network.

Mô tả

Thiết bị mạng Switch Unifi US-16-XG

Product
US-16-XG
Dimensions443 x 221 x 43 mm (17.44 x 8.70 x 1.69″)
WeightWithout Mount BracketsWith Mount Brackets
2.62 kg (5.78 lb)2.71 kg (5.97 lb)
Enclosure CharacteristicsSGCC Steel
Total Non‑Blocking Throughput160 Gbps
Switching Capacity320 Gbps
Forwarding Rate238.10 Mpps
Max. DC Power Consumption36W (Excludes SFP/SFP+ Modules)
Power MethodACDC
100‑240VAC/50‑60 Hz, Universal InputDC 56W, 57 to 20V, with 48/24VDC Terminal Block
Supported Voltage Range100 to 240VAC57 to 20VDC
Power SupplyAC/DC, Internal, 56W DC
LEDs Per Data PortSpeed/Link/Activity
Sound Level*Fan Level 0Fan Level 1Fan Level 2Fan Level 3
1.0 dBr10.7 dBr12.2 dBr12.8 dBr
Networking Interfaces(12) 1/10 Gbps SFP+ Ethernet Ports

(4) 1/10 Gbps RJ45 Ethernet Ports

Management Interface(1) RJ45 Serial Port Out‑of‑Band, Ethernet Ports In‑Band
CertificationsCE, FCC, IC
Rack MountYes, 1U High
ESD/EMP ProtectionAir: ± 24 kV, Contact: ± 24 kV
Operating Temperature‑5 to 40° C (23 to 104° F)
Operating Humidity5 to 95% Noncondensing
Shock and VibrationETSI300‑019‑1.4 Standard
