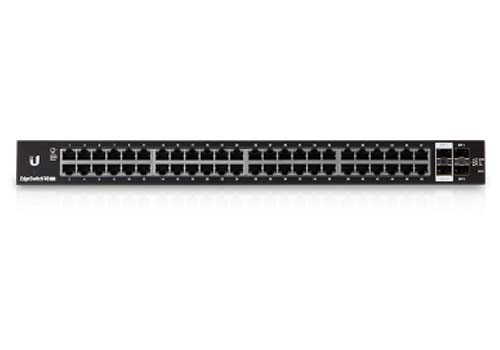

Switch Unifi EdgeSwitch LITE ES-48-Lite Managed Gigabit Switches with SFP, 48 RJ45 Gigabit ports, total non-blocking throughput: up to 70 Gbps.

Danh mục:

Mô tả

Thiết bị mạng Switch Unifi EdgeSwitch ES-48-Lite

Product
ES-48-Lite
Dimensions
 443 x 43 x 286 mm (17.44 x 1.69 x 11.26″)
Weight
Rack-Mount Brackets Included : 3.65 kg (8.05 lb)
Rack-Mount Brackets Excluded : 3.56 kg (7.85 lb)
Total Non-Blocking Throughput
 70 Gbps
Switching Capacity
 140 Gbps
Forwarding Rate
 104.16 Mpps
Max. AC Power Consumption
56W
Power Method
  • AC: 100-240VAC/50-60 Hz, Universal Input
  • DC: DC 56W, 25 to 16V, with 2.5 mm DC Power Inline Connector
Power Supply
 AC/DC, Internal, 56W DC
LEDs Per Port
  • Serial Console Port: N/A
  • RJ45 Data Ports: Speed/Link/Activity
  • SFP Data Ports: Speed/Link/Activity
Networking Interfaces
(48) 10/100/1000 Mbps RJ45 Ethernet Ports
(2) 1/10 Gbps SFP+ Ethernet Ports
(2) 1 Gbps SFP Ethernet Ports
Management Interface
 (1) RJ45 Serial Port, Ethernet In/Out Band
Certifications
 CE, FCC, IC
Rackmount Yes, 1U High
ESD/EMP Protection
 Air: ±24 kV, Contact: ±24 kV
Operating Temperature
 -5 to 40° C (23 to 104° F)
Operating Humidity
 5 to 95% Noncondensing
Shock and Vibration
 ETSI300-019-1.4 Standard
