Mô tả

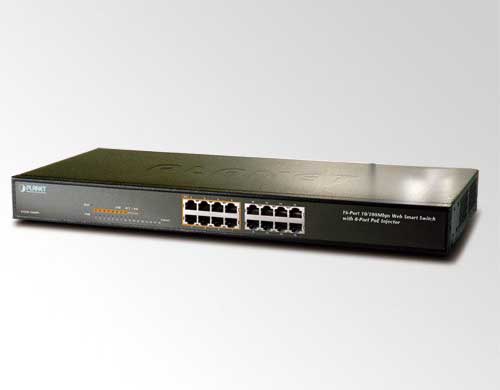

Thiết bị mạng Switch Planet FNSW-1608PS
Hardware Specifications | |
Fast Ethernet Ports | 16 10/ 100Base-TX RJ-45 Auto-MDI / MDI-X ports |
Power over Ethernet ports | 8-Port with PoE injector function (Port 1 to port 8) |
Switch Processing Scheme | Store-and-Forward |
Throughput (packet per second) | 2.38Mpps |
Switch fabric | 3.2Gbps |
Address Table | 4K entries |
Share data Buffer | 2.75Mb embedded memory for packet buffers |
Flow Control | Back pressure for half duplex, IEEE 802.3x Pause Frame for full duplex |
Dimensions (W x D x H) | 440 x 120 x 44 mm (1U height) |
Weight | 1.75 kg |
Power Requirements | 100-240V AC, 50-60 Hz, 1A |
System Operating Power Consumption / Dissipation (Full load) | 123 watts / 419.43BTU |
Temperature | Operating: 0~50 degrees C |
Storage: -40~70 degrees C | |
Humidity | Operating: 5~90% (non-condensing) |
Storage: 5~90% (non-condensing) | |
Power over Ethernet | |
PoE Standard | IEEE 802.3af Power over Ethernet / PSE |
PoE Power Supply Type | End-Span |
PoE Power Output | Per Port 48V DC, 350mA. Max. 15.4 watts |
Power Pin Assignment | 1/2(+), 3/6(-) |
Power Budget | 110 watts |
Smart functions | |
System Configuration | Web interface |
Alert Trap | SNMP Trap for alarm notification of events |
Port configuration | Port speed duplex mode selection. Flow control disable / enable. Port disable / enable. Port description on each port |
Bandwidth Control | Yes, 1Mbps / 2Mbps / 4Mbps / 8Mbps / 16Mbps / 32Mbps / 64Mbps |
Broadcast Storm Control | Yes, 5% / 10% / 25% / 50% / Disable |
Port Statistics | Display each port’s detail Ethernet traffic counter information |
VLAN | 16 port-based VLAN groups / 32 IEEE 802.1Q VLAN groups / MTU VLAN |
Port trunking | Supports 2 groups of 4-Port trunk support, up to 800Mbps bandwidth per trunk |
Port Mirroring | Port mirroring allows monitoring of the traffic across any port in real time |
QoS | Allows to assign low / high priority on each port |
First-In-First-Out, All-High-before-Low, Weight-Round-Robin QoS policy | |
MAC address / TCP & UDP filter | Yes |
IGMP Snooping v1 / v2 | Allows to disable or enable |
PoE power control | Allows to disable or enable power provision and assign priority on each PoE port |
Standards Conformance | |
Regulation Compliance | FCC Part 15 Class A, CE |
Standards Compliance | IEEE 802.3:Ethernet |
IEEE 802.3u:Fst Ethernet | |
IEEE 802.3x:Full-duplex Flow control | |
IEEE 802.3af:Power over Ethernet | |
IEEE 802.1Q:VLAN | |
IEEE 802.1p:QoS |
