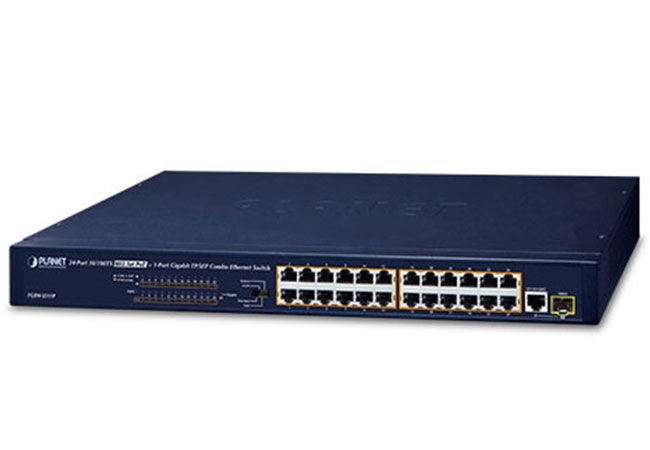

Switch Planet FGSW-2511P: 24-Port 10/100BASE-TX 802.3at PoE + 1-Port Gigabit TP/SFP Combo Ethernet Switch

Mô tả

Thiết bị mạng Switch Planet FGSW-2511P

ProductFGSW-2511P
Hardware Specifications
10/100Mbps Ports24 10/100BASE-TX MDI/MDI-X RJ45 ports
Gigabit Ports1 10/100/1000BASE-T MDI/MDI-X RJ45 port
SFP Slot1 1000BASE-X SFP interface, shared with Gigabit RJ45 copper
PoE Inject Port24-port with 802.3at PoE injector function (Port-1 to Port-24)
LED DisplaySystem: Power (Green)
10/100BASE-TX RJ45 Interface:
– LNK/ACT (Green, Port-1 to Port-24)
– PoE (Amber, Port-1 to Port-24)
10/100/1000BASE-T RJ45 and 1000BASE-X combo Interface: LNK/ACT (Green, Port 25)
DIP Switch4 operation modes:
Standard/QoS/VLAN/Extend
Switch ArchitectureStore and Forward
MAC Address Table16K MAC address table with auto learning function
Switch Fabric6.8Gbps
Switch Throughput5.06Mpps @64bytes
Maximum Packet Size16K bytes
Flow ControlBack pressure for half duplex
IEEE 802.3x pause frame for full duplex
Power RequirementsAC 100~240V, 3A max.
Power Consumption205 watts, 699.5 BTU
Dimensions (W x D x H)440 x 200 x 45 mm
Weight2419 g
ESD ProtectionContact discharge of ±6KV DC
Air discharge of ±8KV DC
Surge Immunity±4KV
Power over Ethernet
PoE StandardIEEE 802.3at Power over Ethernet Plus/PSE
PoE Power Supply TypeMid-span
Power Pin Assignment4/5 (+), 7/8(-)
PoE Power OutputPer Port 52V DC, 600mA. max. 30 watts (IEEE 802.3at)
Per Port 52V DC, 300mA. max. 15.4 watts (IEEE 802.3af)
PoE Power Budget190 watts
Number of PDs, 7 watts24
Number of PDs, 15 watts12
Number of PDs, 30 watts6
Standard Conformance
Standard ComplianceIEEE 802.3 Ethernet
IEEE 802.3u Fast Ethernet
IEEE 802.3ab Gigabit 1000BASE-T
IEEE 802.3z Gigabit SX/LX
IEEE 802.3x Flow Control
IEEE 802.3af Power over Ethernet
IEEE 802.3at Power over Ethernet Plus
IEEE 802.3z Energy Efficient Ethernet
Environment
Operating Environment0 ~ 50 degrees C
Storage Environment-10 ~ 70 degrees C
Operating Humidity5 ~ 95%, relative humidity, non-condensing
Storage Humidity5 ~ 95%, relative humidity, non-condensing
