Switch Planet WGSW-28040

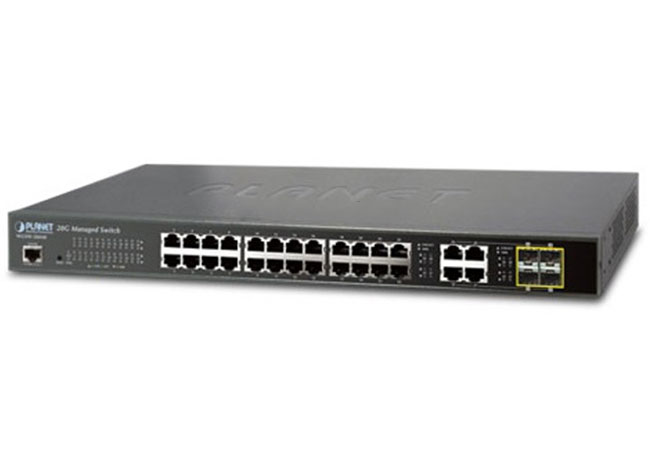

Switch Planet WGSW-28040: 24-Port 10/100/1000T + 4-Port Gigabit TP/SFP Combo Managed Switch
Danh mục:

Mô tả

Thiết bị mạng Switch Planet WGSW-28040

Product Model WGSW-28040
Description 28-Port 10/100/1000Mbps with 4 Shared SFP Managed Switch
Hardware Specification
Copper Ports 28 10/ 100/1000Base-T RJ-45 Auto-MDI/MDI-X ports
SFP/mini-GBIC Slots 4 SFP interfaces, shared with Port-25 to Port-28, Compatible with 100Base-FX
Switch Processing Scheme Store-and-Forward
Switch Fabric 56Gbps / non-blocking
Throughput @ 64Kbytes 41.67Mpps
MAC Address Table 16K entries
Share Data Buffer 448K bytes
Flow Control IEEE 802.3x Pause Frame for Full-Duplex
Back pressure for Half-Duplex
Jumbo Frame 9216 Bytes
LED PWR, SYS, LNK/ACT, 1000
Dimension (W x D x H) 440 x 200 x 44.5 mm, 1U height
Weight 2.7 KG
Power Consumption Max. 12 Watts / 40.92 BTU
Power Requirement AC 100~240V, 50/60Hz
ESD Protection 6KV DC
Layer 2 Function
Basic Management Interfaces Console, Telnet, IPv4 & IPv6 Web Browser, SNMPv1, v2c
Security Management Interfaces SSH, SSL, SNMP v3
Port Configuration Port disable / enable
Auto-Negotiation 10/100/1000Mbps full and half duplex mode selection
Flow Control disable / enable
Port Description
Port Status Display each port’s speed duplex mode, link status, Flow control status, Auto negotiation status, trunk status.
VLAN 802.1Q Tagged Based VLAN
Q-in-Q
Private VLAN Edge (PVE)
IP Subnet VLAN
Voice VLAN
Up to 256 VLAN groups, out of 4094 VLAN IDs
Link Aggregation IEEE 802.3ad LACP / Static Trunk
Supports 8 groups of 8-Port trunk support
QoS 8-Level priority queue for switching

Traffic classification based, Strict priority and WRR:
– 802.1p priority.
– IP DSCP field.
IGMP Snooping IGMP (v1/v2/v3) Snooping, up to 255 multicast Groups.
IGMP Querier mode support.
Access Control List IP-Based ACL / MAC-Based ACL.
Up to 256 entries.
Standards Conformance
Regulation Compliance FCC Part 15 Class A, CE
Standards Compliance IEEE 802.3: 10Base-T.
IEEE.802.3u: 100Base-TX.
IEEE 802.3z: Gigabit SX/LX.
IEEE 802.3ab: Gigabit 1000T.
IEEE 802.3x: Flow Control.
IEEE 802.3ad: Port trunk with LACP.
IEEE 802.1D: Spanning tree protocol.
IEEE 802.1w: Rapid spanning tree protocol.
IEEE 802.1s: Multiple spanning tree protocol.
IEEE 802.1p: Class of service.
IEEE 802.1Q: VLAN Tagging.
IEEE 802.1x: Port Authentication Network Control.
Environment
Operating Temperature: 0 ~ 50 Degree C
Relative Humidity: 20 ~ 95% (non-condensing)
Storage Temperature: -10 ~ 70 Degree C
Relative Humidity: 20 ~ 95% (non-condensing)
