Cáp mạng Dintek CAT5E FTP (1103-03003CH)

Cáp mạng Dintek CAT5E FTP (1103-03003CH)

Cáp mạng Dintek CAT5E FTP (1103-03003CH) CAT.5e FTP, 4 pair, 24AWG, Bọc nhôm chống nhiễu, 305m/box

Description

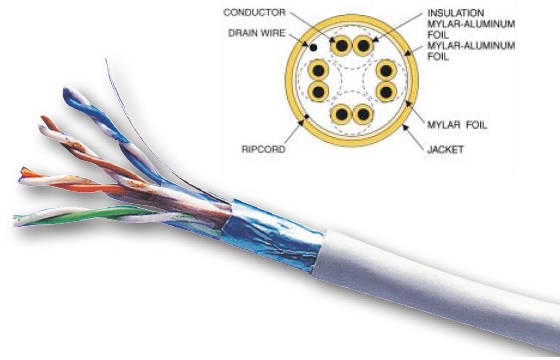

Cáp mạng Dintek CAT.5E FTP (1103-03003CH)

  • Cáp mạng CAT.5E FTP Dintek bọc nhôm chống nhiễu 4-pairs, 305m/thùng.

Application:

  • Voice
  • T1
  • ISDN
  • 10Base T(IEEE 802.3)
  • Fast Ethernet(IEEE802.3u)
  • 100Vg-AnyLAN(IEEE 802.12)
  • Token Ring(IEEE 802.5)
  • TP-PMD(ANSI X3T9.5)
  • 100Base-T Ethernet (IEEE 802.5)
  • 155/622Mbps ATM
  • 1000Base-T
  • 550MHz Broadband video

Industry Standard:

  • UL, ETL Verified
  • TIA/EIA 568B.2
  • ISO/IEC 11801
  • EN 50173

Cable Data:

  • No. of Pairs: 4
  • Jacket Color: Gray
  • Insulation Thickness: 0.2~0.3mm
  • Nom.O.D.: 6.2±0.2mm
  • Flame Rating: CM
  • Package: Reel, 305m(1,000ft)/ box

Product  Electrical Characteristics:

  • Impedance: 100±15 ohms
  • DC Resistance, max. ohms/100m: 9.38
  • DC Resistance, max. Unbalance of a pair: 5%max
  • Capacitance Unbalance(Pair to Ground):
  • 330pf/ 100m max.
  • Propagation Delay Skew: 45nS/100m max.

Sản xuất tại Taiwan
