Converter Planet VC-201 Ethernet over VDSL2 Converter
Danh mục:

Mô tả

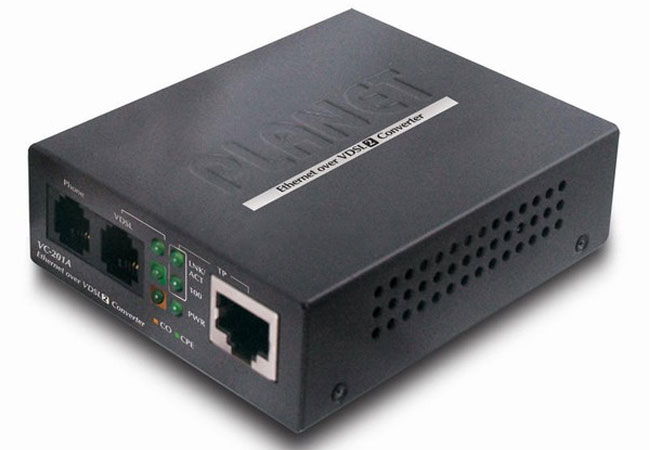

Thiết bị mạng Converter Planet VC-201

Model VC-201A
Ethernet over VDSL 2 Converter
Hardware Specification
Ports 10/100Base-TX: 1 RJ-45, Auto-negotiation and Auto-MDI / MDI-X
VDSL: 1 RJ-11, female Phone Jack
PHONE: 1 RJ-11, Built-in splitters for POTS connection
DIP Switch 4 position DIP switch
Functionality • CO / CPE mode select
• Selectable fast and interleaved mode
• Selectable target band plan
• Selectable target SNR mode
Encoding • VDSL-DMT
– ITU-T G.997.1
– ITU-T G.993.2 VDSL2 (Profile 17a Support)
LED Indicators • One Power
• 3 for RJ-11 / VDSL2
• 2 for per RJ-45 10/100Base-TX port
Cabling Type • 10Base-T: 2-pair UTP Cat.3,4,5 up to 100m (328ft)
• 100Base-TX: 2-pair UTP Cat.5, up to 100m (328ft)
• VDSL: twisted-pair telephone wires (AWG24 or better) up to 1.6km
Performance • Full VDSL2 bandwidth up to: (Down Stream / Up Stream)
Asymmetric Mode:
– 200m -> 100/55Mbps
– 400m -> 90/50Mbps
– 600m -> 70/40Mbps
– 800m -> 60/25Mbps
– 1000m -> 45/15Mbps
– 1200m -> 35/10Mbps
– 1400m -> 30/6Mbps
– 1600m -> 25/4Mbps
Symmetric Mode:
– 200m -> 90/90Mbps
– 400m -> 90/90Mbps
– 600m -> 70/70Mbps
– 800m -> 55/50Mbps
– 1000m -> 40/35Mbps
– 1200m -> 30/25Mbps
– 1400m -> 25/20Mbps
– 1600m -> 20/15Mbps
Standard Conformance
Regulation Compliance FCC Part 15 Class A, CE
Standards Compliance IEEE 802.3 10Base-T
IEEE 802.3u 100Base-TX
ITU-T:
– G.993.1 (VDSL)
– G.997.1
– G.993.2 VDSL2 (Profile 17a )
Physical Specification
Dimensions (H x W x D) 26 x 70 x 94mm
Weight 0.4 kg
Environmental Specification
Operating Temperature: 0~50°C
Relative Humidity: 10~90 %( non-condensing)
Storage Temperature: -25~70°C
Relative Humidity: 10~90 %( non-condensing)
