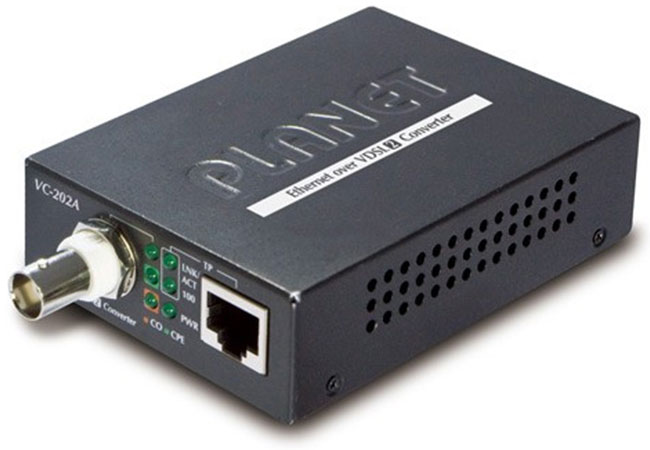

Converter Planet VC-202A: 1 Port 10/100Base-TX + 1 Port BNC Ethernet over Coaxial Extender
Danh mục:

Mô tả

Thiết bị mạng Converter Planet VC-202A
Model VC-202A
Hardware Specification
Ports • 10/100Base-TX: 1 RJ-45, Auto-negotiation and Auto-MDI / MDI-X
• Coaxial: 1 BNC, female connector
DIP Switch 4 position DIP switch
Functionality • CO / CPE mode select
• Selectable fast and interleaved mode
• Selectable target Band Plan
• Selectable target SNR mode
Encoding DMT (Discrete Multi-Tone) line coding
– ITU-T G.997.1
– ITU-T G.993.1
– ITU-T G.993.2 (Profile 17a Support)
LED Indicators One Power
3 for Coaxial (BNC):
– Green, LNK
– Green, CO mode
– Green, CPE mode
2 for per RJ-45 10/100Base-TX port:
– Green, LNK / ACT
– Green, Speed
Cabling • Ethernet : 10Base-T: 2-pair UTP Cat.3, 4 and 5 up to 100m (328ft)
• Ethernet : 100Base-TX: 2-pair UTP Cat.5, 5e and 6 up to 100m (328ft)
• Coaxial Cable: 50ohm, RG58A / U, RG58C / U, RG58 / U or equivalent; 75ohm, RG-6 (Distance up to 3.0km)
Performance Asymmetric:
– 200m ->100/65Mbps
– 400m ->100/64Mbps
– 600m ->100/59Mbps
– 800m ->100/53Mbps
– 1000m -> 94/44Mbps
– 1200m -> 84/36Mbps
– 1400m -> 74/28Mbps
– 1600m -> 66/19Mbps
– 1800m -> 60/14Mbps
– 2000m -> 44/15Mbps
– 2200m -> 35/12Mbps
– 2400m -> 32/10Mbps
– 2600m -> 29/8Mbps
– 2800m -> 27/6Mbps
– 3000m -> 25/5Mbps
Symmetric:
– 200m ->99.7/100Mbps
– 400m ->100/100Mbps
– 600m -> 86/91Mbps
– 800m -> 79/80Mbps
– 1000m -> 69/66Mbps
– 1200m -> 60/52Mbps
– 1400m -> 51/41Mbps
– 1600m -> 45/36Mbps
– 1800m -> 40/29Mbps
– 2000m -> 27/26Mbps
– 2200m -> 23/24Mbps
– 2400m -> 22/21Mbps
– 2600m -> 20/18Mbps
– 2800m -> 18/15Mbps
– 3000m -> 17/13Mbps
Dimension (W x D x H) 97 x 70 x 26 mm
Weight 0.2 kg
Power Requirement 5V DC 2A
Power Consumption 6.3Watts / 21BTU (maximum)
Standard Conformance
Standards Compliance IEEE 802.3 10Base-T
IEEE 802.3u 100Base-TX
IEEE 802.3x Full Duplex Pause Frame Flow-Control
ITU-T
– G.993.1
– G.997.1
– G.993.2 (Profile 17a Support)
Environment
Operating Temperature: 0 ~ 50 Degree C
Humidity: 5~90%, relative humidity (non-condensing)
Storage Temperature: -10~70 Degree C
Humidity: 5~90%, relative humidity (non-condensing)
