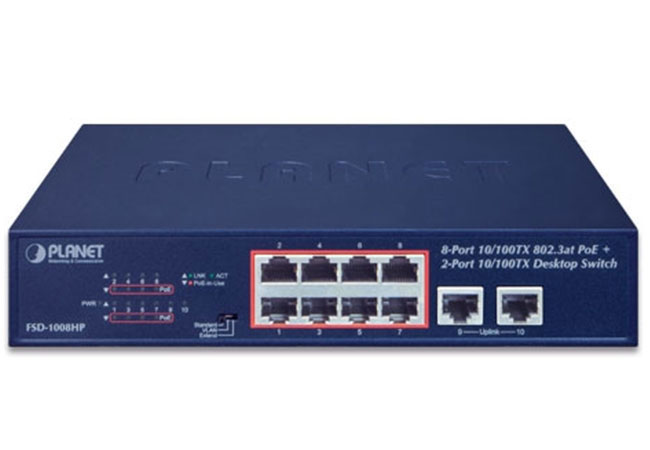

Switch Planet FSD-1008HP: 8-Port 10/100TX 802.3at PoE + 2-Port 10/100TX Desktop Switch (120 watts)

Mô tả

Thiết bị mạng Switch Planet FSD-1008HP

ProductFSD-1008HP
Hardware Specifications
Thermal FanFanless
Copper Port10 10/100BASE-TX MDI/MDIX Ports
PoE Injector Port8-port with 802.3at/af PoE injector function with Port-1 to Port-8
Switch ArchitectureStore-and-Forward
Switch Fabric2Gbps/non-blocking
Switch Throughput@64 bytes1.48Mpps@64 bytes
MAC Address Table8K entries, automatic source address learning and aging
Maximum Frame Size1522 bytes
Flow ControlIEEE 802.3x pause frame for full-duplex
Back pressure for half-duplex
LEDSystem: Power (Green)
10/100BASE-TX RJ45 interfaces: 10/100Mbps LNK/ACT (Green)
PoE interfaces: PoE-in-Use (Orange)
DIP SwitchSelectable operation mode:

  • Standard
  • VLAN
  • Extend
Dimensions (W x D x H)220 x 150 x 43 mm (1U height)
EnclosureMetal
Weight1230 g
Power RequirementsAC 100~240V, 50/60Hz, 2.5A max.
Power Consumption/ DissipationSystem On: Max. 2.4 watts/8.1 BTU
Ethernet Full Loading: Max. 5 watts/10.2 BTU
PoE Full Loading: Max. 129 watts/440.1 BTU
ESD ProtectionContact discharge of 4KV DC
Air discharge of 6KV DC
Power over Ethernet
PoE StandardIEEE 802.3af Power over Ethernet/PSE
IEEE 802.3at Power over Ethernet Plus/PSE
PoE Power Supply TypeEnd-span
PoE Power OutputPer port 55V DC, 540mA. max. 30 watts
Power Pin Assignment1/2(+), 3/6(-)
PoE Power Budget120 watts
Max. Number of Class 2 PDs8
Max. Number of Class 3 PDs8
Max. Number of Class 4 PDs4
Standards Conformance
Regulatory ComplianceFCC Part 15 Class A, CE
Standards ComplianceIEEE 802.3 10BASE-T
IEEE 802.3u 100BASE-TX
IEEE 802.3x Flow control and back pressure
IEEE 802.3af Power over Ethernet
IEEE 802.3at Power over Ethernet Plus
IEEE 802.3az Energy Efficient Ethernet (EEE)
Environment
OperatingTemperature: 0 ~ 50 degrees C
Relative Humidity: 5 ~ 95% (non-condensing)
StorageTemperature: -10 ~ 70 degrees C
Relative Humidity: 5 ~ 95% (non-condensing)
