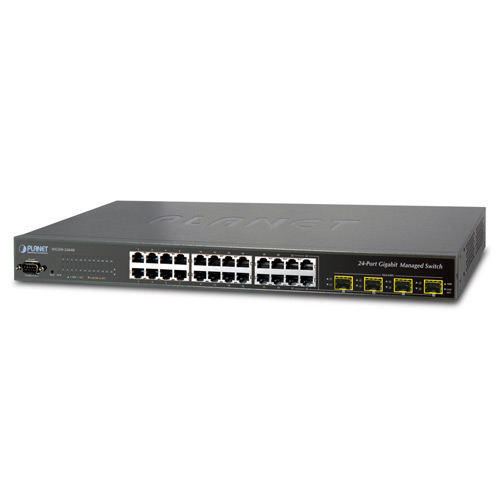

Thiết bị mạng Switch Planet WGSW-24040
Hardware Specifications | |
Copper Ports | 24 10/100/1000BASE-T RJ45 Auto-MDI/MDI-X ports |
10/100/1000Mbps / SFP Combo Interfaces | 4 10/100/1000Mbps TP and SFP shared combo interfaces, SFP (Mini-GBIC) supports 100/1000Mbps Dual mode DDM, shared with Port-21 to Port-24 |
Console | 1 x RJ45 serial port (115200, 8, N, 1) |
Switch Architecture | Store-and-Forward |
Switch Fabric | 48Gbps / non-blocking |
Throughput | 95.2Mpps@64Bytes |
Address Table | 8K entries, automatic source address learning and ageing |
Shared Data Buffer | 1392 kilobytes |
Flow Control | IEEE 802.3x pause frame for full-duplex |
Back pressure for half-duplex | |
Jumbo Frame | 10K bytes |
Reset Button | < 5 seconds: System reboot |
> 5 seconds: Factory default | |
LED | System: |
PWR (Green) | |
Ethernet Interfaces (Port 1 to Port 24): | |
1000 LNK/ACT (Green), 10/100 LNK/ACT (Orange) | |
100/1000Mbps SFP Combo Interfaces (Port 21 to Port 24): | |
1000 (Green), 100 (Orange) | |
Power Requirements | WGSW-24040: 100~240V AC, 50/60Hz, 2A |
WGSW-24040R: 100~240V AC, 50/60Hz | |
48V DC @ 0.6A, Range: 36 ~ 60V | |
Power Consumption (Full Loading) | Max. 30 watts / 102 BTU |
ESD Protection | 6KV DC |
Dimensions (W x D x H) | 440 x 200 x 44.5 mm, 1U high |
Weight | WGSW-24040: 3.3 kg |
WGSW-24040R: 3.4 kg | |
Layer2 Management Function | |
Basic Management Interfaces | Console; Telnet; Web Browser; SNMP v1, v2c |
Secure Management Interfaces | SSH, SSL, SNMP v3 |
Port Configuration | Port disable / enable |
Auto-negotiation 10/100/1000Mbps full and half duplex mode selection | |
Flow control disable / enable | |
Port Status | Display each port’s speed duplex mode, link status, flow control status, auto-negotiation status, trunk status |
Port Mirroring | TX / RX / Both |
Many-to-1 monitor | |
VLAN | 802.1Q tag-based VLAN, up to 255 VLAN groups |
Q-in-Q tunneling | |
Private VLAN Edge (PVE) | |
MAC-based VLAN | |
Protocol-based VLAN | |
Voice VLAN | |
MVR (Multicast VLAN Registration) | |
Up to 255 VLAN groups, out of 4094 VLAN IDs | |
Link Aggregation | IEEE 802.3ad LACP / static trunk |
Supports 10 trunks groups with 16 ports per trunk group | |
QoS | Traffic classification based, strict priority and WRR |
8-Level priority for switching | |
- Port Number | |
- 802.1p priority | |
- 802.1Q VLAN tag | |
- DSCP/ToS field in IP packet | |
IGMP Snooping | IGMP (v1/v2/v3) snooping, up to 255 multicast groups |
IGMP querier mode support | |
MLD Snooping | MLD (v1/v2) Snooping, up to 255 multicast groups |
MLD Querier mode support | |
Access Control List | IP-based ACL / MAC-based ACL |
Up to 256 entries | |
Bandwidth Control | Per port bandwidth control |
Ingress: 500Kb~80Mbps | |
Egress: 64Kb~80Mbps | |
SNMP MIBs | RFC 1213 MIB-II |
IF-MIB | |
RFC 1493 Bridge MIB | |
RFC 1643 Ethernet MIB | |
RFC 2863 Interface MIB | |
RFC 2665 Ether-Like MIB | |
RFC 2737 Entity MIB | |
RFC 2819 RMON MIB (Group 1, 2, 3 and 9) | |
RFC 2618 RADIUS Client MIB | |
RFC 3411 SNMP-Frameworks-MIB | |
IEEE 802.1X PAE | |
LLDP | |
MAU-MIB | |
Layer 3 Functions | |
IP Interfaces | Max. 8 VLAN interfaces |
Routing Table | Max. 32 routing entries |
Routing Protocols | IPv4 software static routing |
IPv6 software static routing | |
Standards Conformance | |
Regulation Compliance | FCC Part 15 Class A, CE |
Standards Compliance | IEEE 802.3 10BASE-T |
IEEE 802.3u 100BASE-TX/100BASE-FX | |
IEEE 802.3z 1000BASE-SX/LX | |
IEEE 802.3ab 1000BASE-T | |
IEEE 802.3x flow control and back pressure | |
IEEE 802.3ad port trunk with LACP | |
IEEE 802.1D Spanning Tree protocol | |
IEEE 802.1w Rapid Spanning Tree protocol | |
IEEE 802.1s Multiple Spanning Tree protocol | |
IEEE 802.1p Class of service | |
IEEE 802.1Q VLAN tagging | |
IEEE 802.1x Port Authentication Network Control | |
IEEE 802.1ab LLDP | |
IEEE 802.3af Power over Ethernet | |
IEEE 802.3at Power over Ethernet PLUS | |
RFC 768 UDP | |
RFC 793 TFTP | |
RFC 791 IP | |
RFC 792 ICMP | |
RFC 2068 HTTP | |
RFC 1112 IGMP version 1 | |
RFC 2236 IGMP version 2 | |
RFC 3376 IGMP version 3 | |
RFC 2710 MLD version 1 | |
FRC 3810 MLD version 2 | |
Environment | |
Operating | Temperature: 0 ~ 50 degrees C for AC power input |
Relative Humidity: 5 ~ 95% (non-condensing) | |
Storage | Temperature: -10 ~ 70 degrees C |
Relative Humidity: 5 ~ 95% (non-condensing) |
