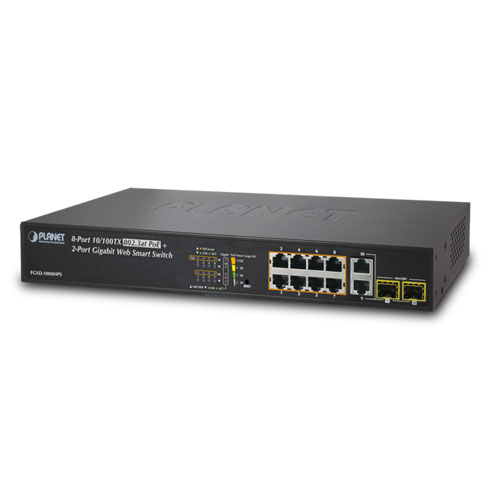

Switch Planet FGSD-1008HPS

Thiết bị mạng Switch Planet FGSD-1008HPS

Product	FGSD-1008HPS
Hardware Specifications
10/100Mbps Copper Ports	8 10/100BASE-TX RJ45 Auto-MDI/MDI-X ports
Gigabit Copper Ports	2 10/100/1000BASE-T RJ45 Auto-MDI/MDI-X ports
SFP/mini-GBIC Slots	2 1000BASE-X SFP interfaces, shared with Port-9 to Port-10
Switch Architecture	Store-and-Forward
Switch Fabric	5.6Gbps / non-blocking
Throughput	4.16Mpps@64Bytes
Address Table	4K entries, automatic source address learning and ageing
Shared Data Buffer	2.75Mb embedded memory for packet buffers
Flow Control	IEEE 802.3x pause frame for full-duplex
Flow Control	Back pressure for half-duplex
Maximum Transmit Unit	1536 Bytes
Reset Button	< 5 sec: System reboot
Reset Button	> 5 sec: Factory default
Dimensions (W x D x H)	330 x 155 x 43.5 mm, 1U height
Weight	1.5kg
LED	System:
	Power (Green)
	10/100BASE-TX RJ45 Interfaces (Port1 to Port8):
	10/100Mbps LNK/ACT (Green)
	PoE In-Use (Orange)
	10/100/1000BASE-T RJ45 / SFP Interfaces (Port 9 to Port10):
	LNK/ACT (Green)
	100/1000 (Green)
	PoE Usage
	30W, 60W, 90W, 120W (Orange)
Cable	Twisted-Pair
	10BASE-T: 2-Pair UTP CAT. 3, 4, 5, up to 100 meters
	100BASE-TX: 2-Pair UTP CAT. 5, 5e up to 100 meters
	1000BASE-T: 4-Pair UTP CAT. 5e, 6 up to 100 meters
	Fiber-Optic Cable
	1000BASE-SX :
	50/125μm or 62.5/125μm multi-mode fiber optic cable, up to 550m (varying on SFP module)
	1000BASE-LX :
	9/125μm single-mode fiber optic cable, up to 10/20/30/40/50/60/70/120 kilometers (varying on SFP module)
Power Requirements	100~240V AC, 50/60Hz, 2A
Power Consumption	Max. 150 watts / 511BTU
ESD Protection	2KV DC
Power over Ethernet
PoE Standard	IEEE 802.3af / 802.3at PoE / PSE
PoE Power Supply Type	End-span
PoE Power Output	Per Port 52V DC, Max. 30.8 watts
Power Pin Assignment	1/2(+), 3/6(-)
PoE Power Budget	125 watts (max.)
PoE Ability	PD @ 7 watts 8 units
	PD @ 15.4 watts 8 units
	PD @ 30.8 watts 4 units
Layer 2 Functions
Port Management	Port disable / enable
	Auto-negotiation 10/100/1000Mbps full and half duplex mode selection
	Flow Control disable / enable
	Bandwidth Control / Broadcast Storm Control
Port Status	Display each port’s speed duplex mode, link status, flow control status, auto negotiation status
Port Mirroring	TX / RX / Both
Port Mirroring	Many-to-1 monitor
VLAN	802.1Q tagged-based VLAN, up to 30 VLAN groups, out of 4094 VLAN IDs
	Port-based VLAN, up to 10 VLAN groups
	MTU VLAN
QoS	Allow to assign low / high priority on each port
QoS	First-In-First-Out, All-High-before-Low, Weight-Round-Robin QoS policy
Security	Control MAC address binding
Security	TCP & UDP Filter
Spanning Tree Protocol	STP, IEEE 802.1D Spanning Tree Protocol
Spanning Tree Protocol	RSTP, IEEE 802.1w Rapid Spanning Tree Protocol
Link Aggregation	2 groups of 4-Port 10/100BASE-TX trunk supported
Link Aggregation	1 group of 2-Port 10/100/1000BASE-T trunk supported
DHCP Relay	DHCP Relay Agent / DHCP Relay Server
PoE Setting	PoE Status / PoE Port Setting / PoE Sequential
Configuration Back / Restore	Configuration backup / restore through Web interface
IGMP Snooping	IGMP (v1 / v2) Snooping, up to 32 multicast groups
Management Functions
Basic Management Interfaces	Web browser, SNMP v1 / v2c
Standards Conformance
Regulation Compliance	FCC Part 15 Class A, CE
Standards Compliance	IEEE 802.3 Ethernet
	IEEE 802.3u Fast Ethernet
	IEEE 802.3ab Gigabit Ethernet
	IEEE 802.3z Gigabit Ethernet
	IEEE 802.3x Full-duplex flow control
	IEEE 802.1Q VLAN
	IEEE 802.1p QoS
	IEEE 802.1D Spanning Tree Protocol
	IEEE 802.1w Rapid Spanning Tree Protocol
	IEEE 802.3af Power over Ethernet
	IEEE 802.3at Power over Ethernet Plus
Environment
Operating	Temperature: 0 ~ 50 degrees C
Operating	Relative Humidity: 5 ~ 95% (non-condensing)
Storage	Temperature: -10 ~ 70 degrees C
Storage	Relative Humidity: 5 ~ 95% (non-condensing)
