Mô tả

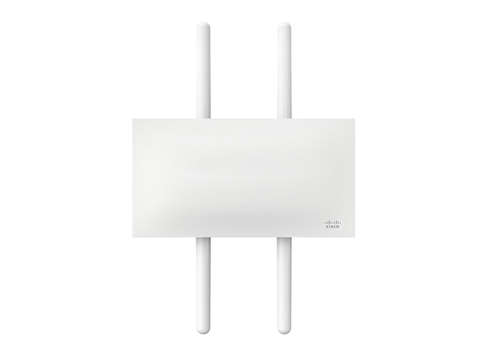

Thiết bị mạng Wireless Meraki MR84-HW
Mã sản phẩm | MR84-HW |
Interfaces | – 1x 100/1000/2.5G BASE-T Ethernet & 1x 10/100/1000 BASE-T Ethernet (RJ45) – Four external N-type female antenna connectors |
Radio | – 2.4 GHz 802.11b/g/n/ac client access radio – 5 GHz 802.11a/n/ac client access radio – 2.4 GHz & 5 GHz dual-band WIDS/WIPS, spectrum analysis, & location analytics radio – 2.4 GHz Bluetooth Low Energy (BLE) radio with Beacon and scanning support – Concurrent operations of all four radios |
Operating bands | – 2.412-2.484 GHz – 5.150-5.250 GHz (UNII-1) – 5.250-5.350 GHZ (UNII-2) – 5.470-5.600, 5.660-5.725 GHz (UNII-2e) – 5.725 -5.825 GHz (UNII-3) |
Antenna | – Integrated omni-directional antenna (Gain: 3 dBi @ 2.4 GHz, 5 dBi @ 5 GHz) |
802.11ac and 802.11n Capabilities | – 4 x 4 multiple input, multiple output (MIMO) with four spatial streams – SU-MIMO and MU-MIMO support – Maximal ratio combining (MRC) & beamforming – 20 and 40 MHz channels (802.11n), 20, 40, 80, 160, 80 + 80 MHz channels (802.11ac) – Up to 256-QAM on both 2.4 GHz & 5 GHz bands – Packet aggregation |
Security | – Integrated Layer 7 firewall with mobile device policy management – Real-time WIDS/WIPS with alerting and automatic rogue AP containment with Air Marshal – Flexible guest access with device isolation – VLAN tagging (802.1q) and tunneling with IPsec VPN – PCI compliance reporting – WEP, WPA, WPA2-PSK, WPA2-Enterprise with 802.1X – EAP-TLS, EAP-TTLS, EAP-MSCHAPv2, EAP-SIM – TKIP and AES encryption – Enterprise Mobility Management (EMM) & Mobile Device Management (MDM) integration – Cisco ISE integration for Guest access and BYOD Posturing |
Quality of Service | – Advanced Power Save (U-APSD) – WMM Access Categories with DSCP and 802.1p support – Layer 7 application traffic identification and shaping |
Mounting | – Mounts to walls and vertical poles – Mounting hardware included |
Power | – Power over Ethernet: 37-57 V (802.3at required; functionality-restricted 802.3af mode supported) – Power consumption: 21W max (802.3af) – Power over Ethernet injector sold separately |
Weight | – 3.8 lbs. (1.7 kg) |
Physical Dimensions | – 728.6 cm x 17.6 cm x 18.5 cm |
Environment | – 32 °F to 104 °F (0 °C to 40 °C) – Humidity: 5 to 95% non-condensing |
Warranty | – 1 year hardware warranty with advanced replacement included |
